Heel Cushion Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
    5. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  3. Partially peel back the floor covering.
  4. Remove the fastener.

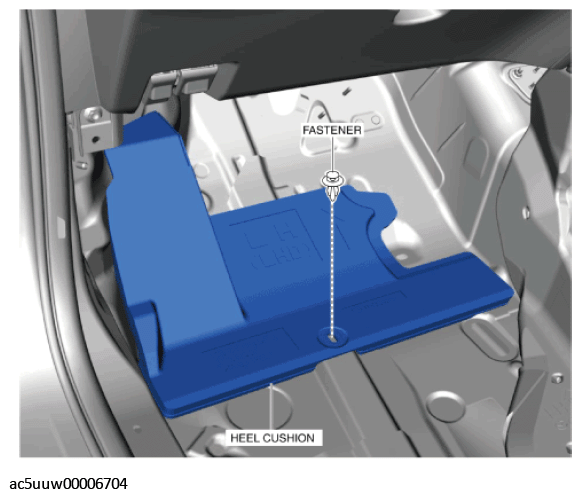

    Fig 1: Heel Cushion And Fastener
    G11427963Courtesy of MAZDA MOTORS CORP.
  5. Pull the heel cushion in the direction of the arrow shown in the figure and remove it.

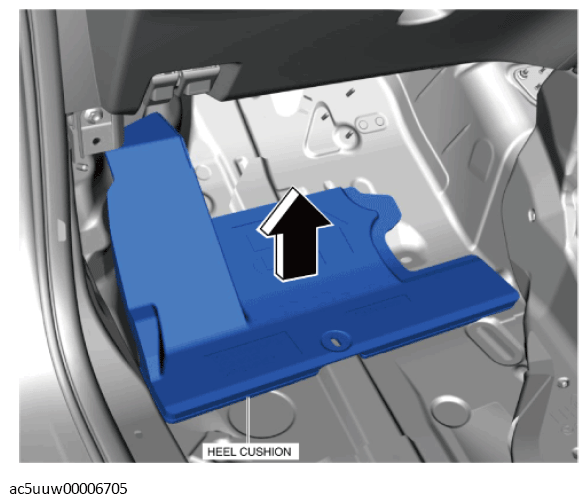

    Fig 2: Removing Heel Cushion
    G11427964Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
