Rear Door Trim Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

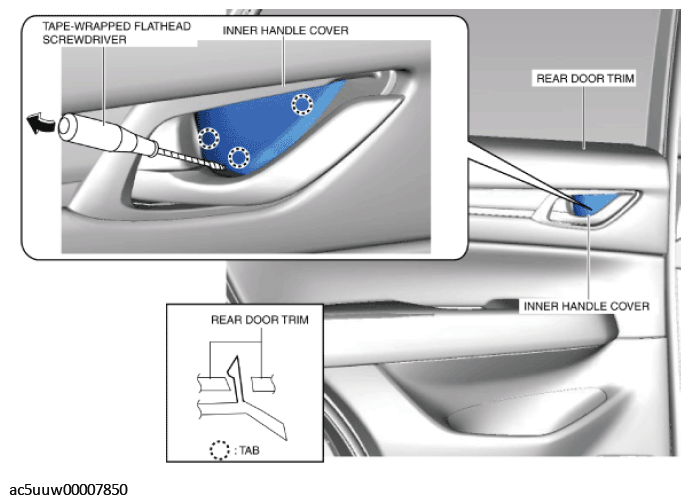

Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow and remove the inner handle cover while detaching the tabs.

Fig 1: Removing Inner Handle Cover Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

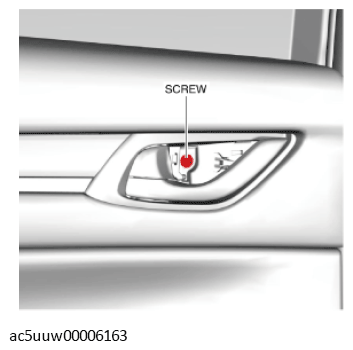

Remove the screw.

Fig 2: Rear Door Trim Screw
Courtesy of MAZDA MOTORS CORP.

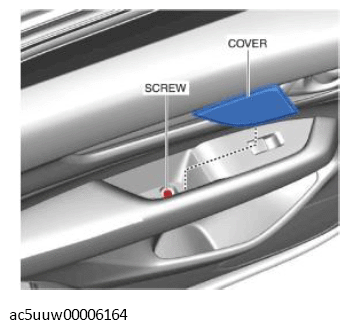

Remove the cover, then remove the screw.

Fig 3: Cover And Screw
Courtesy of MAZDA MOTORS CORP.

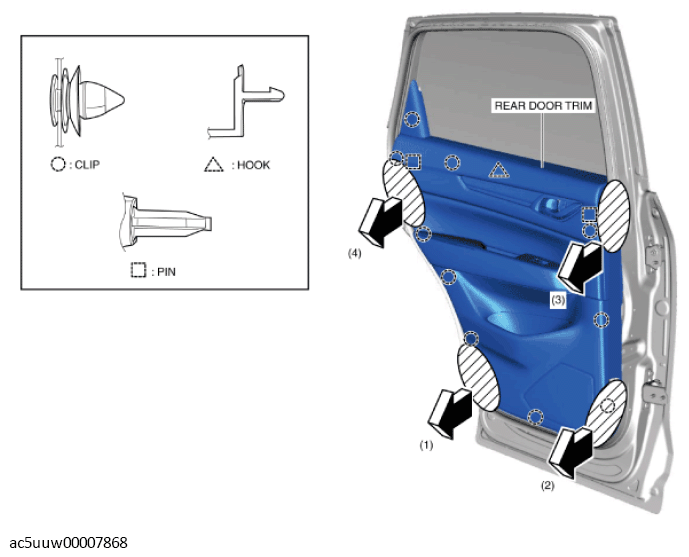

Hold each shaded area and pull the rear door trim in the order of arrows (1), (2), (3), and (4), and remove it while detaching the clips, hook, and pin.

Fig 4: Removing Rear Door Trim
Courtesy of MAZDA MOTORS CORP.
Disconnect the power window subswitch connector.
Install in the reverse order of removal.
