Rear Door Trim Disassembly/Assembly

  1. Disassemble in the order shown in the figure.

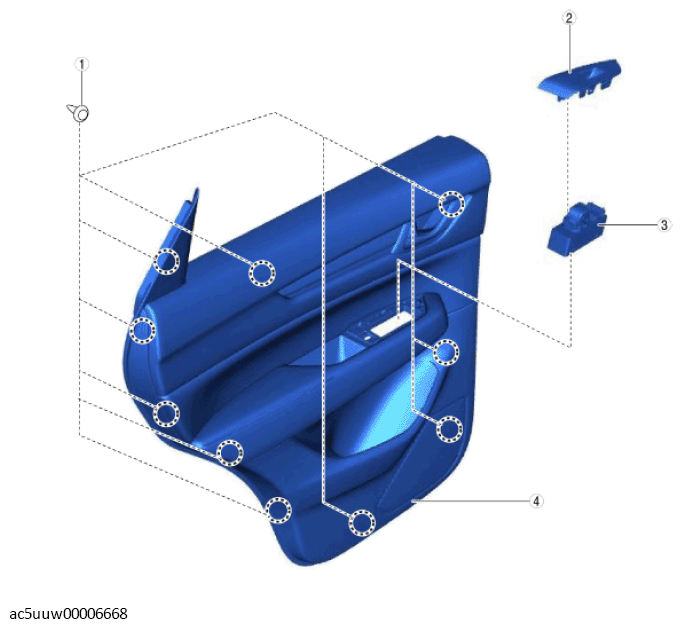

    Fig 1: Rear Door Trim Disassembly
    G11428010Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Power window subswitch cover
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3 Power window subswitch
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    4 Rear door trim
  2. Assemble in the reverse order of disassembly.
