Liftgate Side Trim Removal/Installation

Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
Remove the fastener.

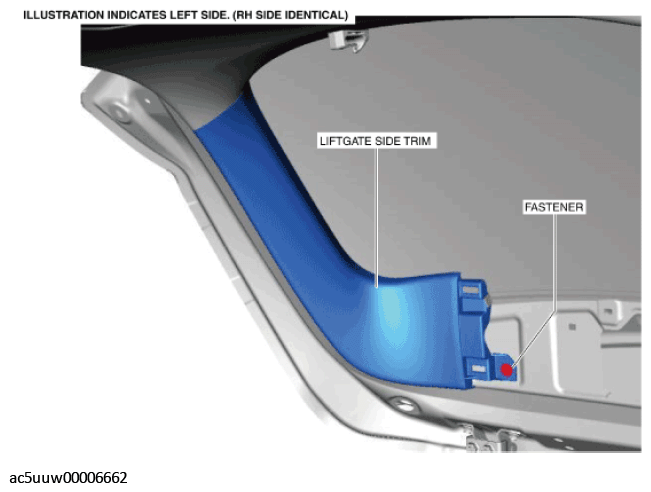

Fig 1: Liftgate Side Trim And Fastener
Courtesy of MAZDA MOTORS CORP.
Hold the shaded areas shown in the figure and detach the clips while moving the liftgate side trim in the direction of the arrow.

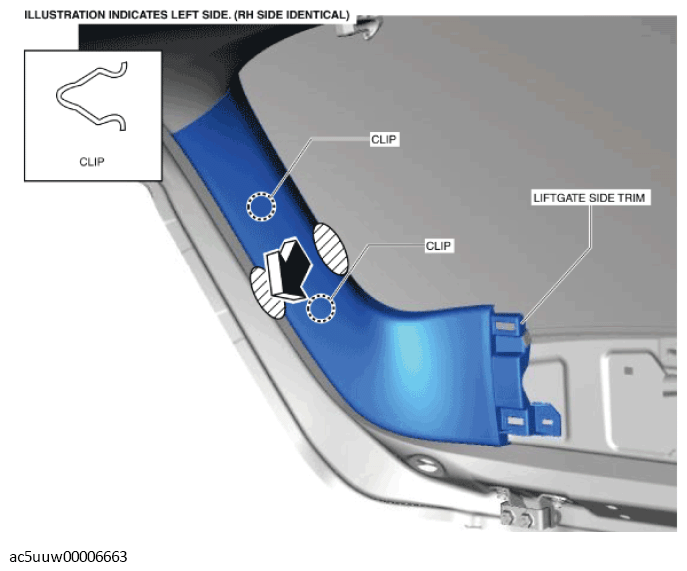

Fig 2: Moving Liftgate Side Trim
Courtesy of MAZDA MOTORS CORP.
Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate side trim in the direction of arrows (1) to detach the tabs, move the liftgate side trim in the direction of arrow (2) with the tabs detached and remove the liftgate side trim while detaching the hook.

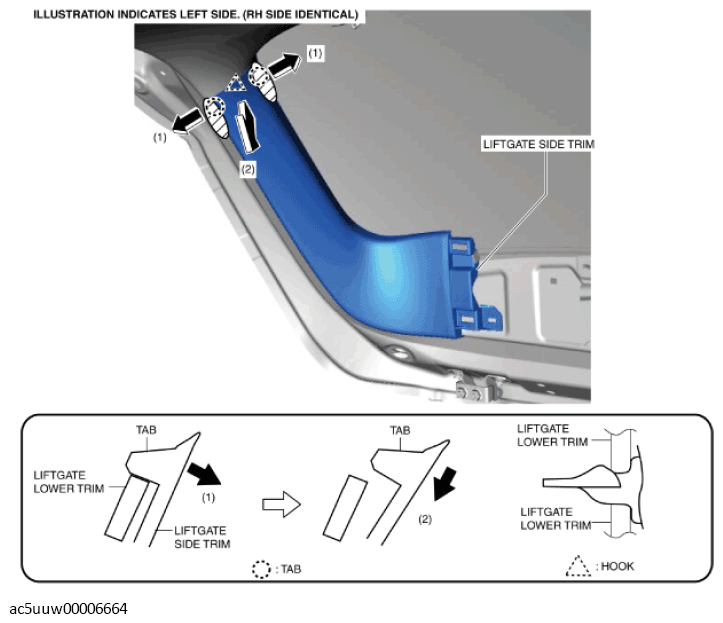

Fig 3: Peeling Edge Of Liftgate Side Trim
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
