Headliner Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable
  2. Partially peel back the seaming welt
  3. Remove the rain sensor cover. (Vehicles with auto light/wiper system). See RAIN SENSOR REMOVAL/INSTALLATION )
  4. Disconnect the rain sensor connector (Vehicles auto light/wiper system)
  5. Remove the following parts"
    1. Sunroof seaming welt (vehicles with sunroof system)
    2. A-pillar trims. See A-PILLAR TRIM REMOVAL/INSTALLATION .
    3. Front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    4. Rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
    5. B-pillar lower trims. See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .
    6. Upper anchor of the front seat belt. See FRONT SEAT BELT REMOVAL/INSTALLATION .
    7. B-pillar upper trims. See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .
    8. Rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
    9. Rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
    10. C-pillar trims. See C-PILLAR TRIM REMOVAL/INSTALLATION .
  6. Disconnect the auto-dimming mirror connector (vehicles with auto-dimming mirror)
  7. Remove the sunvisors. See SUNVISOR REMOVAL/INSTALLATION )
  8. Remove the map light See MAP LIGHT REMOVAL/INSTALLATION )
  9. Remove the assist handle. See ASSIST HANDLE REMOVAL/INSTALLATION )
  10. Disconnect the roof harness connector, remove the clip, and remove the connector.
  11. Remove the fasteners.

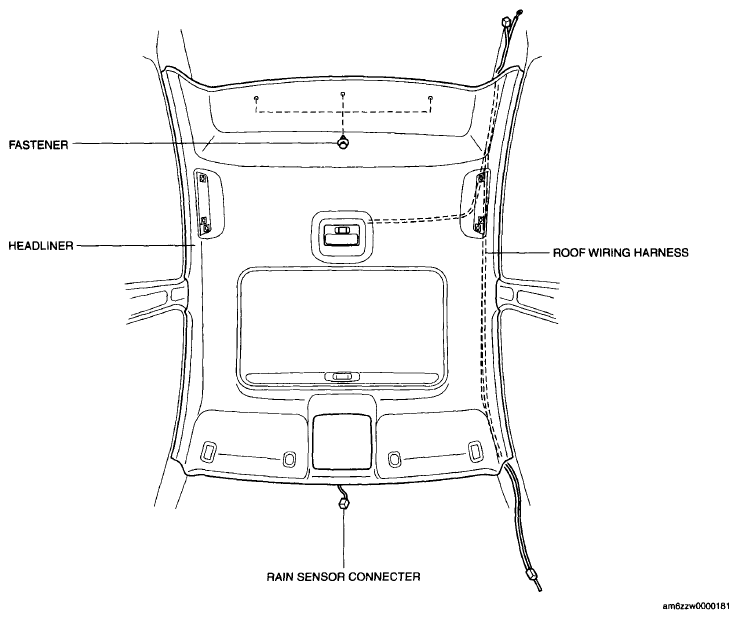

    Fig 1: Identifying Headliner, Roof Wiring Harness With Fasteners
    G06199527Courtesy of MAZDA MOTORS CORP.
  12. Remove the retainer holding the roof panel and remove the headliner.
  13. Take the headliner off from the passenger-side door opening.
  14. Install in the reverse order of removal.

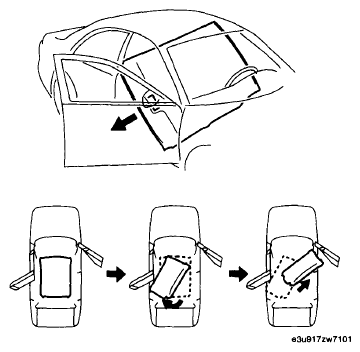

    Fig 2: View Of Headliner Removal/Installation
    G06199528Courtesy of MAZDA MOTORS CORP.
