B-Pillar Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION )
  2. Remove the rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION )
  3. Partially peel back the seaming welt.
  4. Pull the B-pillar lower trim in the direction of the arrow shown in the figure, detach pin A, tab B, pin C, clip D, then remove the B-pillar lower trim.

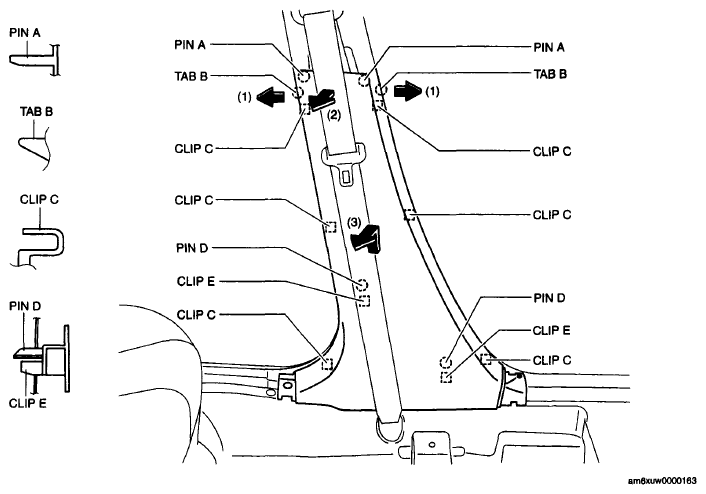

    Fig 1: View Of B-Pillar
    G06199491Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
