A-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Partially peel back the seaming welt.
Pull the upper end of the A-pillar trim in the direction of the arrow shown in the figure and remove clips A, B and C.

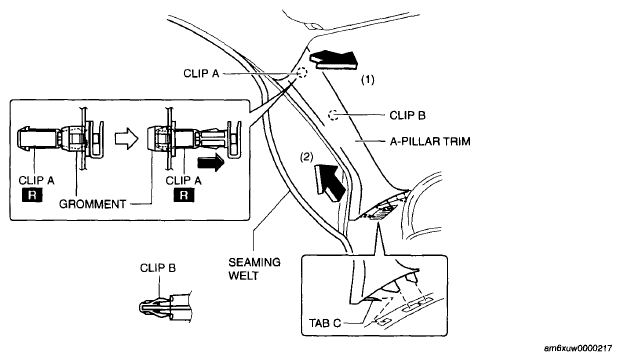

Fig 1: Removing/Installing A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.
When installing the A-pillar, Install the new clip A to the A-pillar trim in advance.
Install in the reverse order of removal.
