B-Pillar Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    2. Rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
    3. Adjuster anchor cover. See FRONT SEAT BELT REMOVAL/INSTALLATION .
    4. Upper anchor installation bolts on the front seat belt. See FRONT SEAT BELT REMOVAL/INSTALLATION .
  2. Partially peel back the seaming welt.
  3. Remove the B-pillar lower trim. See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION )
  4. Grasp the lower end of the B-pillar upper trim, pull it in the direction of the arrow shown in the figure, and remove hook A, guide pin B, and clip C.

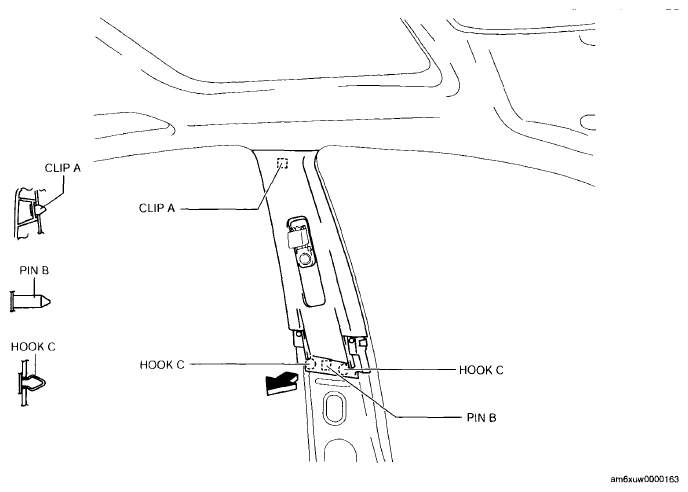

    Fig 1: Identifying Hook A, Guide Pin B And Clip C
    G06199492Courtesy of MAZDA MOTORS CORP.
  5. Remove the B-pillar upper trim in the direction of the arrow shown in the figure.

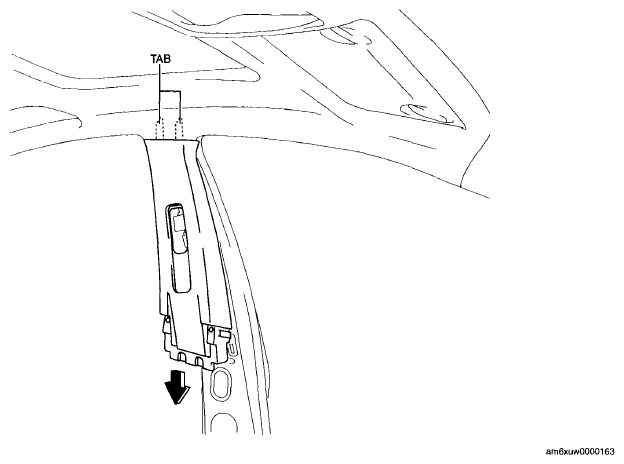

    Fig 2: View Of B-Pillar Upper Trim Removal
    G06199493Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the B-pillar upper trim, be careful not to damage the tabs.
  6. Install in the reverse order of removal.
