Front Scuff Plate Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach tab A while pulling the front scuff plate in the direction of the arrow (1) shown in the figure, then detach tab B, pin C, clip D, pin E and guide F while pulling in the direction of the arrow (2).

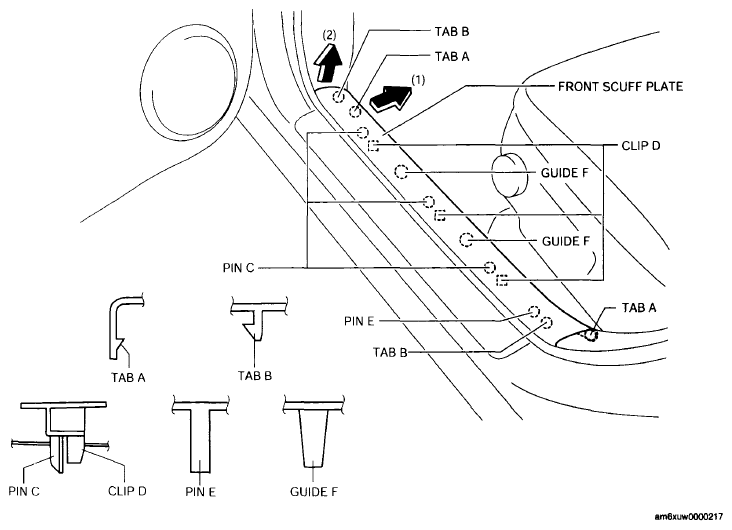

    Fig 1: View Of Front Scuff Plate And Pins
    G06199496Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
