C-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
2. Rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
Partially peel back the seaming welt.

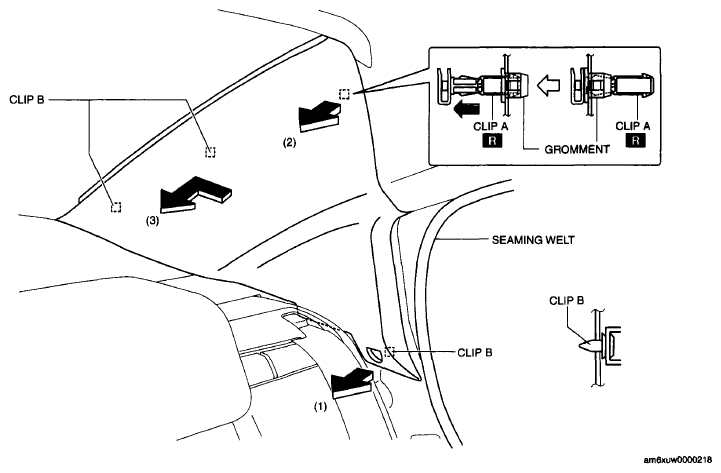

Pull the C-pillar trim in the direction of the arrow shown in the figure, then detaching clip A and B.

Fig 1: Identifying Clip A And B
Courtesy of MAZDA MOTORS CORP.

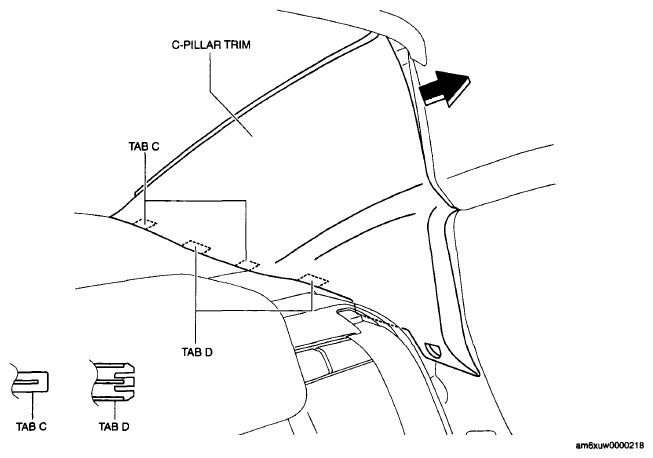

Remove the C-pillar trim in the direction of the arrow shown in the figure.

Fig 2: Locating C-Pillar Trim
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the C-pillar trim, be careful not to damage the tabs.
When installing the C-pillar, Install the new clip A to the C-pillar trim in advance.
Install in the reverse order of removal.
