Rear Scuff Plate Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
  2. Remove the fastener A.
  3. Detach tab B while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach tab C, pin D, E, clip F and G while pulling in the direction of the arrow (2).

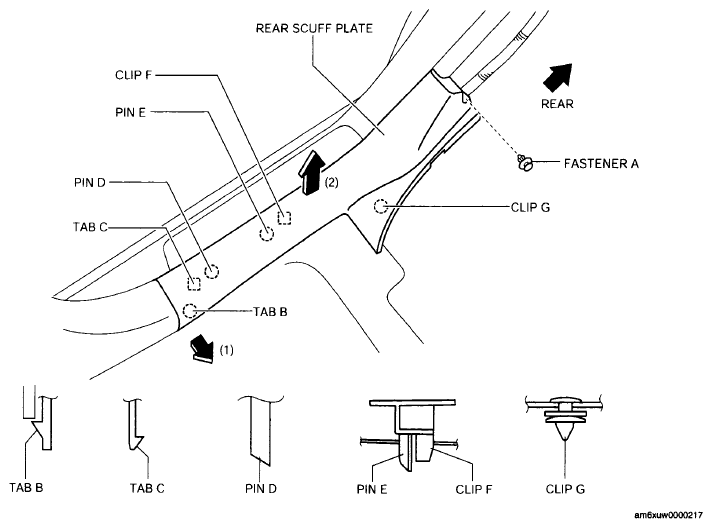

    Fig 1: View Of Rear Scuff Plate And Pins
    G06199497Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
