Rear Seat Cushion Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Detach the hooks from the grommets by pulling the rear seat cushion in the direction of the arrow shown in the figure.

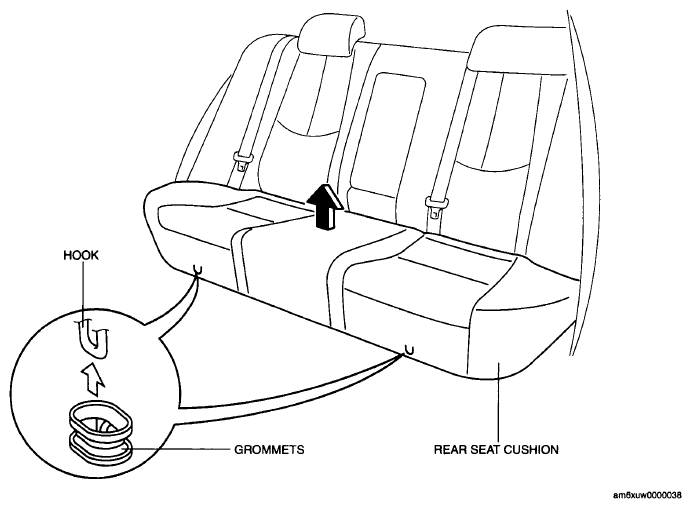

Fig 1: Pulling Rear Seat Cushion
Courtesy of MAZDA MOTORS CORP.
From the backside of the seat, detach the hook in the direction of arrow (1) shown in the figure, then remove the rear seat cushion by pulling it in the direction of arrow (2).
Install in the reverse order of removal.

Fig 2: Removing/Installing Rear Seat Cushion
Courtesy of MAZDA MOTORS CORP.
