Disassembly [09/2023 - ]: Procedure

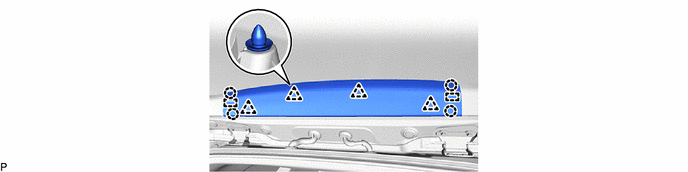

  1. REMOVE BACK DOOR CENTER GARNISH

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1241078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

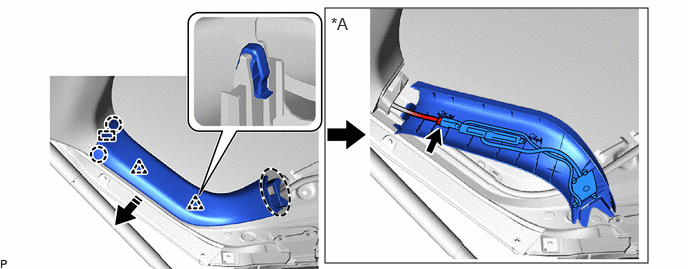

  2. REMOVE BACK DOOR SIDE GARNISH LH
    1. GTY1231330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Illumination - -
      Place Hand Here Remove in this Direction
  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.

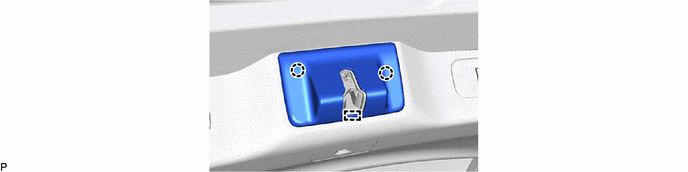

  4. REMOVE BACK DOOR LOCK COVER
    1. GTY1241077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

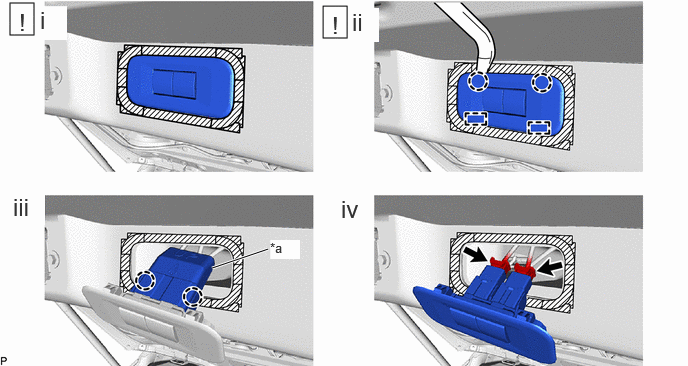

  5. REMOVE BACK DOOR FINISH COVER RH
    1. GTY1236481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Door Control Switch Cover - -
      1. Apply protective tape to the back door trim board assembly as shown in the illustration.
      2. Using a moulding remover, disengage the 2 claws and 2 guides.
      3. Disengage the 2 claws to remove the door control switch cover.
      4. Disconnect the 2 connectors to remove the back door finish cover RH.

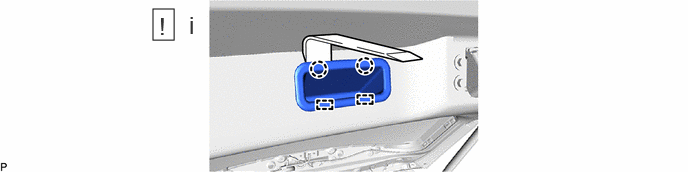

  6. REMOVE BACK DOOR FINISH COVER LH
    1. GTY1228921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the 2 claws and 2 guides to remove the back door finish cover LH.

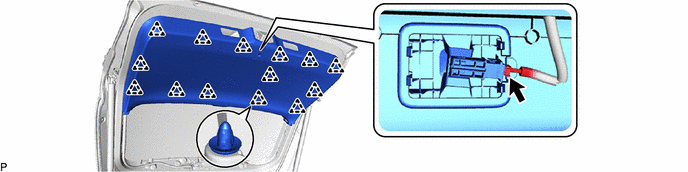

  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
    1. GTY1237370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

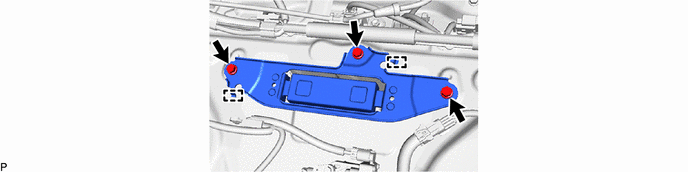

  9. REMOVE BACK DOOR WEIGHT
    1. GTY1237369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    See step  8

  11. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  12. REMOVE REAR INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  13. REMOVE MULTIPLEX NETWORK DOOR ECU

    See step  8

  14. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

    Refer to PROCEDURE - Step 8

  15. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (w/ Back Door Speaker)

    Refer to PROCEDURE - Step 8

  16. REMOVE STEREO SPEAKER BRACKET LH (w/ Back Door Speaker)

    Refer to PROCEDURE - Step 9

  17. REMOVE STEREO SPEAKER BRACKET RH (w/ Back Door Speaker)
    1. Use the same procedure as for the LH side.
  18. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 2

  19. REMOVE REAR SPOILER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3
  20. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  21. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  22. REMOVE REAR WASHER NOZZLE

    Refer to PROCEDURE - Step 4

  23. REMOVE REAR WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 8

  24. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 9

  25. REMOVE REAR WIPER MOTOR ASSEMBLY
    Refer to PROCEDURE - Step 10
  26. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - Step 11

  27. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    Refer to PROCEDURE - Step 8
  28. REMOVE REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 2
  29. REMOVE LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  30. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

  31. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 3

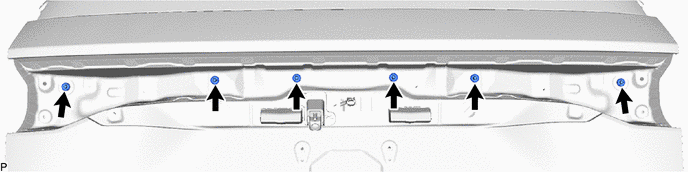

  32. REMOVE HOLE PLUG
    1. GTY1237367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

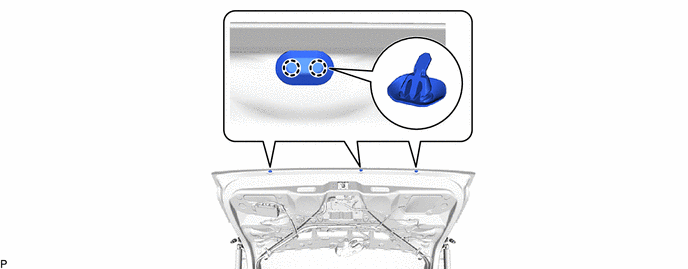

  33. REMOVE BACK DOOR DUST PROOF SEAL
    1. GTY1237363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY LH
    See step  9
  35. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  36. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET LH

    See step  10

  37. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET RH
    1. Use the same procedure as for the LH side.
  38. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET LH

    See step  11

  39. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET RH
    1. Use the same procedure as for the LH side.
  40. REMOVE BACK DOOR PANEL CUSHION

    See step  12
