Removal [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 3

  4. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR FINISH COVER RH
    Refer to PROCEDURE - Step 5
  6. REMOVE BACK DOOR FINISH COVER LH
    Refer to PROCEDURE - Step 6
  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

    HINT:

    • Use the same procedure for the RH side and LH side.
    • The following procedure is for the LH side.

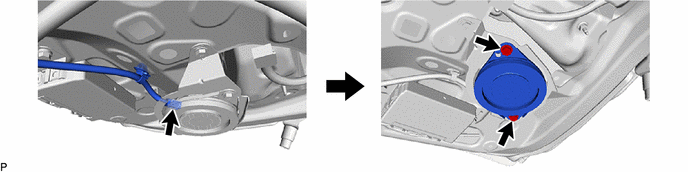

    1. GTY1240189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE STEREO SPEAKER BRACKET LH

    HINT:

    Perform this procedure only when replacement of the stereo speaker bracket LH is necessary.

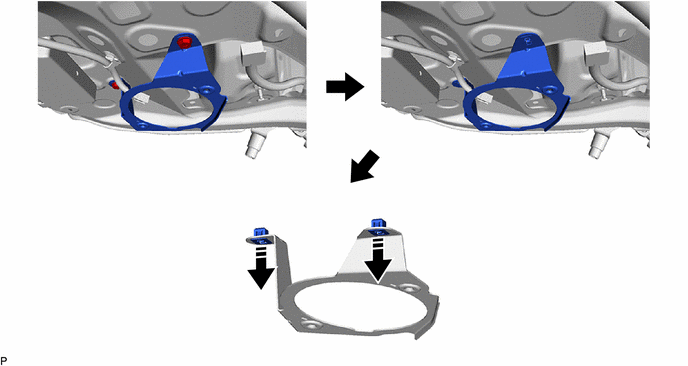

    1. GTY1239813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE STEREO SPEAKER BRACKET RH

    HINT:

    Perform this procedure only when replacement of the stereo speaker bracket RH is necessary.

    1. Use the same procedure as for the LH side.
