Removal [09/2023 - ]: Procedure

  1. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

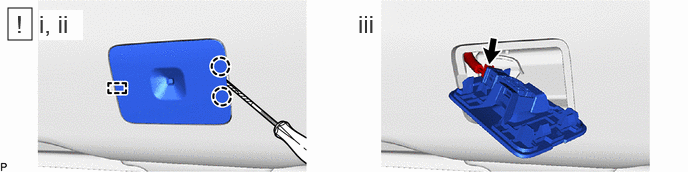

    1. GTY1228002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws.
      2. Disengage the guide and pull out the back door service hole cover.
      3. Disconnect the connector to remove the No. 2 luggage compartment light assembly.
    2. GTY1239646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the No. 2 luggage compartment light assembly.
