Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

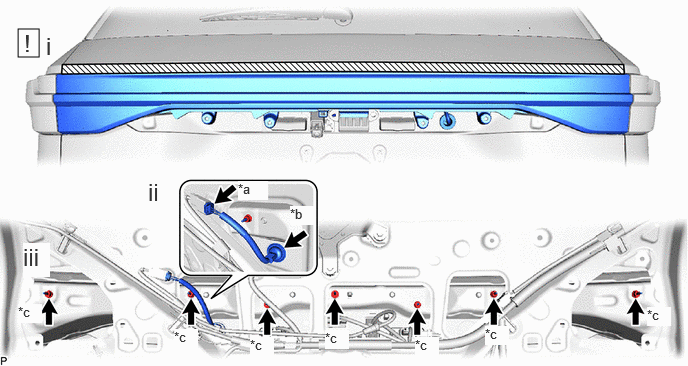

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Connector	*b	Grommet
   *c	Nut	-	-
   	Protective Tape	-	-

   1. Apply protective tape around the rear light assembly as shown in the illustration.
   2. Disconnect the connector and grommet.
   3. Remove the 7 nuts.

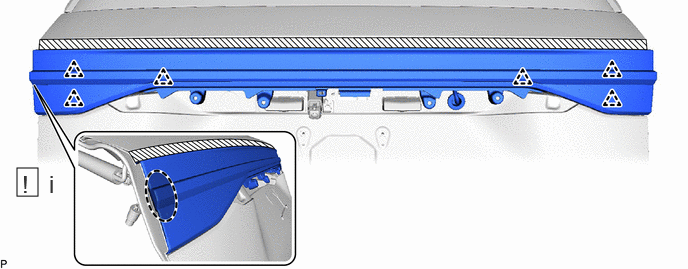

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Place Hand Here

   -

   -

   1. Disengage the 6 clips to remove the rear light assembly as shown in the illustration.
