Removal [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR FINISH COVER RH
    Refer to PROCEDURE - Step 5
  6. REMOVE BACK DOOR FINISH COVER LH
    Refer to PROCEDURE - Step 6
  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7

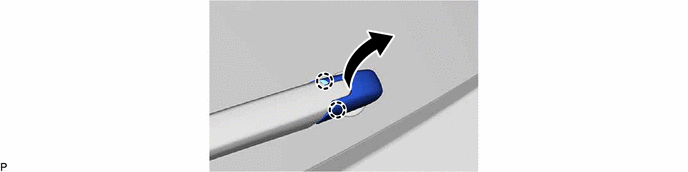

  8. REMOVE REAR WIPER ARM HEAD CAP
    1. GTY1230164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

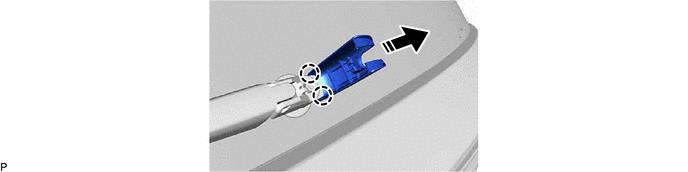

    2. GTY1233694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

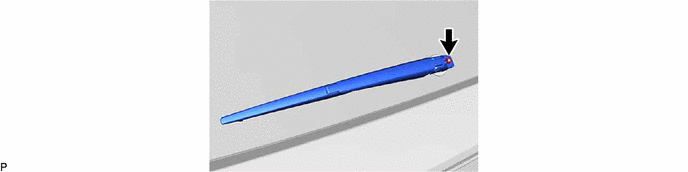

  9. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. GTY1239567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR WIPER MOTOR ASSEMBLY

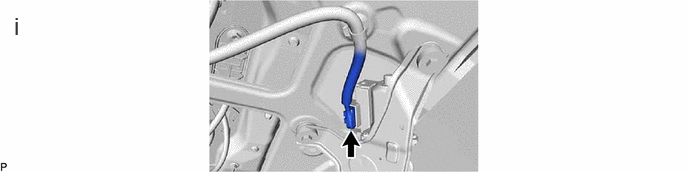

    1. GTY1228702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.

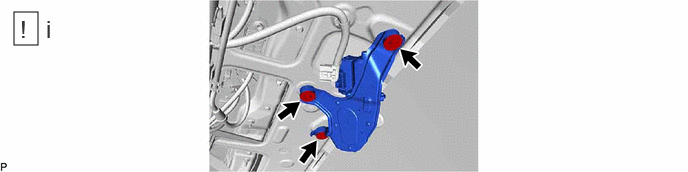

    2. GTY1236496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts and rear wiper motor assembly.
        NOTE:

        Be careful not to scratch the back door glass.

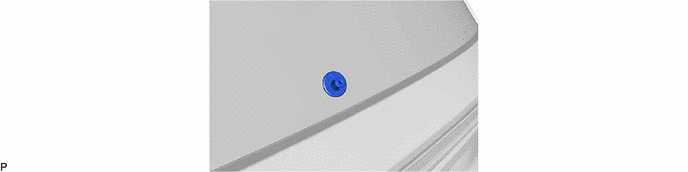

  11. REMOVE REAR WIPER MOTOR GROMMET
    1. GTY1230173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
