Removal [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

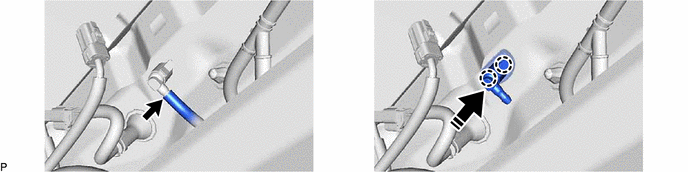

  4. REMOVE REAR WASHER NOZZLE
    1. GTY1232849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
