Removal [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR FINISH COVER RH
    Refer to PROCEDURE - Step 5
  6. REMOVE BACK DOOR FINISH COVER LH
    Refer to PROCEDURE - Step 6
  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7

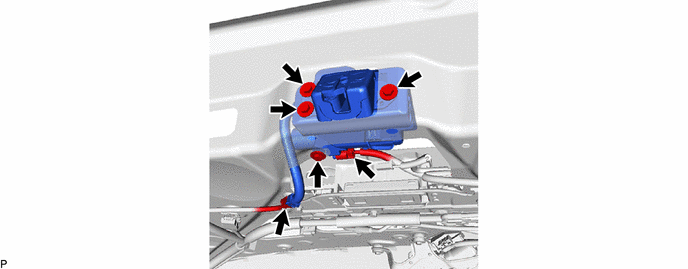

  8. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    1. GTY1235157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
