Removal [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE HOLE PLUG

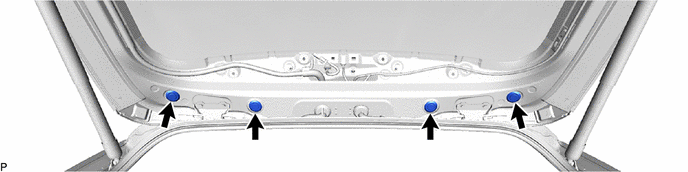

    1. GTY1240486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SPOILER SUB-ASSEMBLY

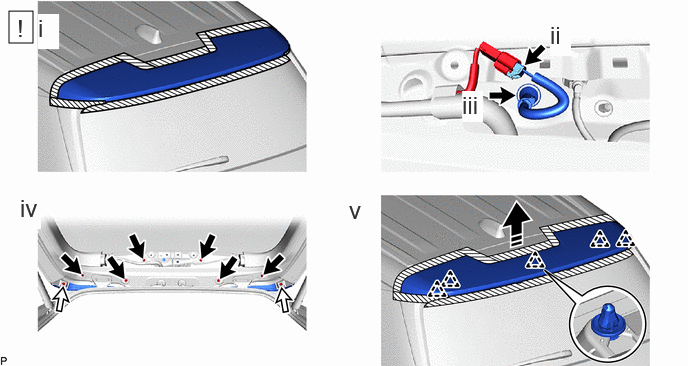

    1. GTY1229960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the rear spoiler sub-assembly as shown in the illustration.
      2. Disconnect the connector.
      3. Disengage the grommet.
      4. Remove the 6 nuts and 2 screws.
      5. Disengage the 5 clips and remove the rear spoiler sub-assembly as shown in the illustration.
  4. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH

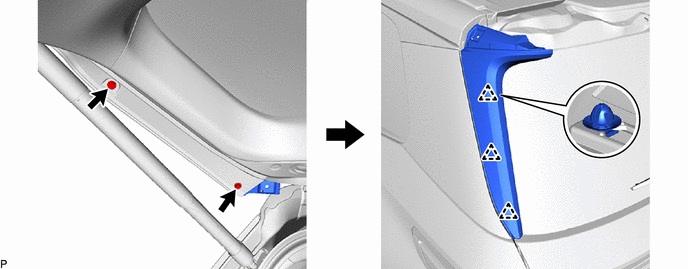

    1. GTY1234557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
