Removal [09/2023 - ]: Procedure

PRECAUTION

w/ Parking Assist Monitor System:
Refer to PRECAUTION [09/2023 - ]
w/ Parking Support Brake System:
Refer to PRECAUTION [09/2023 - ]
w/ Panoramic View Monitor System:
Refer to PRECAUTION [09/2023 - ]
w/ Advanced Park:
Refer to PRECAUTION [09/2023 - ]

REMOVE REAR LIGHT ASSEMBLY
Refer to REMOVAL [09/2023 - ]

REMOVE REAR TELEVISION CAMERA ASSEMBLY

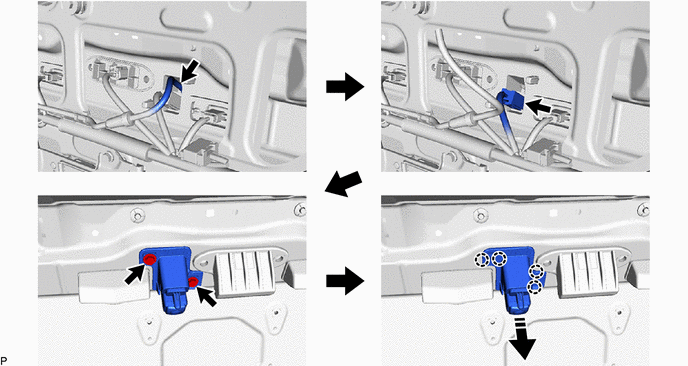

GTY1230667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-

When reusing the rear television camera assembly:

GTY1235902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-

REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
Refer to PROCEDURE - Step 2
