Disassembly [04/2020 - ]: Procedure

REMOVE POSITION CONTROL ECU ASSEMBLY
Refer to PROCEDURE - Step 3 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
REMOVE OCCUPANT DETECTION ECU (for Front Passenger Seat)
Refer to PROCEDURE - Step 3 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 3 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Seat)
Refer to PROCEDURE - Step 3 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Seat)
Refer to PROCEDURE - Step 4 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

REMOVE FRONT SEAT CUSHION SHIELD LH

Detach the rubber band of the separate type front seatback cover from the 2 hooks.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a thin-bladed screwdriver, push in the direction indicated by the arrow shown in the illustration to remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction
	Protective Tape

HINT:

Tape the thin-bladed screwdriver tip before use.

Pull in the removal direction shown in the illustration to detach the guide.

Using moulding remover A, push in the direction indicated by the arrow shown in the illustration to detach the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull in the removal direction shown in the illustration to detach the guides.

Using a screwdriver, detach the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

HINT:

Tape the screwdriver tip before use.

Place your hands at the positions shown in the illustration and pull in the removal direction to detach the guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here
	Remove in this Direction

Disconnect the connector and remove the front seat cushion shield LH together with the front seat inner No. 1 cushion shield LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Detach the claw and remove the front inner No. 1 seat cushion shield LH from the front seat cushion shield LH.

REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Using moulding remover A, push in the direction indicated by the arrow shown in the illustration to detach the claws and remove the slide and vertical power seat switch knob.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE RECLINING POWER SEAT SWITCH KNOB

Using moulding remover A, push in the direction indicated by the arrow shown in the illustration to detach the claws and remove the reclining power seat switch knob.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET LH

Remove the 2 screws and seat adjuster shield clamp bracket LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SWITCH BEZEL
Refer to PROCEDURE - Step 7 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 7 [05/2023 - ]
REMOVE FRONT POWER SEAT SWITCH LH
Refer to PROCEDURE - Step 8 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]

REMOVE FRONT INNER SEAT CUSHION SHIELD LH

Using moulding remover A, push in the direction indicated by the arrow shown in the illustration to detach the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull in the removal direction shown in the illustration to detach the guides.

Using a screwdriver, detach the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

HINT:

Tape the screwdriver tip before use.

Place your hand at the position shown in the illustration and pull in the removal direction to detach the guide and remove the front inner seat cushion shield LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here
	Remove in this Direction

REMOVE LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR
Refer to PROCEDURE - Step 4 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Detach the wire harness clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the claw and remove the connector from the front seat cushion wire harness holder LH.

Detach the wire harness clamp and disconnect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the hooks.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, detach the guides and remove the separate type front seatback assembly from the separate type front seat cushion assembly.

HINT:

Tape the screwdriver tip before use.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

REMOVE SEAT ADJUSTER COVER CAP LH

Using a thin-bladed screwdriver, push it in the direction indicated by the arrow shown in the illustration to detach the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction
	Protective Tape

HINT:

Tape the thin-bladed screwdriver tip before use.

Pull in the removal direction shown in the illustration to detach the guides and remove the seat adjuster cover cap LH.

REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull in the removal direction shown in the illustration to detach the guides.

Pull the reclining adjuster equalizing cable assembly LH in the removal direction shown in the illustration to detach the cable clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cable Clamp
*b	Cable End
	Remove in this Direction

Pull out the cable end of the reclining adjuster equalizing cable assembly LH and remove the reclining remote control lever sub-assembly LH.

REMOVE FRONT SEATBACK POCKET BAND

Using a thin-bladed screwdriver, push it in the direction indicated by the arrow shown in the illustration to remove the 2 front shoulder hanger caps.

HINT:

Tape the thin-bladed screwdriver tip before use.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction
	Protective Tape

Detach the magnetic button.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Press on the center part to remove the front seatback pocket band.

NOTE:

Do not reuse the front seatback pocket band after removing it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Center Part

REMOVE FRONT SEATBACK SUB-ASSEMBLY LH (for Standard Seat Type)

Detach the hooks.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Open the fasteners and fold back the separate type front seatback cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Open in this Direction

Detach the wire harness clamp and disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Wire Harness Clamp
*b	Hook
	Remove in this Direction

Pass the wire harness of the front seatback sub-assembly LH through the hole on the separate type front seatback cover.
Detach the hooks.

Detach the hooks.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the fastening tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fastening Tape

Pass the hooks through the hole on the separate type front seatback cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hook
*b	Hole
	Remove in this Direction

Fold back the front upper seatback cover sub-assembly LH and remove the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fold back the front upper seatback cover sub-assembly LH and remove the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fold back the front upper seatback cover sub-assembly LH and remove the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Insert your hands at the positions shown in the illustration and pull in the removal direction to detach the guides and remove the front seatback sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here
	Remove in this Direction

REMOVE FRONT SEAT HEADREST SUPPORT (for Standard Seat Type)

Detach the fastening tape and fold back the front upper seatback cover sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fastening Tape
	Fold in this Direction

Detach the claws and remove the 2 front seat headrest supports.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE FRONT SEAT HEADREST SUPPORT (for Sports Seat Type)

for Outer Side:

Using a SST, insert it into the gap to push it against the claw inside the seatback frame sub-assembly and pull in the direction indicated by the arrow shown in the illustration to detach the inside claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Inside Claw
*b	Outside Claw
*c	Detached
	Remove in this Direction
	Protective Tape

SST: 09813-24010

Using a screwdriver, detach the outside claw.
HINT:

Tape the screwdriver tip before use.
Pull the headrest support in the removal direction shown in the illustration to remove it.
NOTE:
Remove the headrest support after first checking that the claws have been detached correctly from the headrest support hole.

for Inner Side:

Detach the claws and remove the front seat headrest support.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE FRONT UPPER SEATBACK COVER SUB-ASSEMBLY LH (for Standard Seat Type)

Remove the front upper seatback cover sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (for Standard Seat Type)

Remove the 2 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fold back the separate type front seatback cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fastening Tape
*b	Hook

Detach the fastening tape.
Detach the hooks.

Fold back the separate type front seatback pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bracket

Remove the nut and 2 brackets of the separate type front seatback cover.
Detach the hooks.

Pull in the removal direction (1) and lift in the removal direction (2) shown in the illustration to remove the separate type front seatback cover with pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Separate Type Front Seatback Pad
*2	Front Seatback Frame Sub-Assembly
*a	Connector
	Remove in this Direction (1)
	Remove in this Direction (2)

NOTE:

If it is not slid far enough in the removal direction (1) before being lifted up in the removal direction (2), the separate type front seatback pad may hit the front seatback frame sub-assembly and connector.
Do not excessively pull the separate type front seatback pad as it may become damaged.

REMOVE SEPARATE TYPE FRONT SEATBACK COVER (for Standard Seat Type)

Pass the bracket of the separate type front seatback cover through the hole on the separate type front seatback pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Remove the 9 hog rings and separate type front seatback cover from the separate type front seatback pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SEAT COVER WIRE (for Standard Seat Type)

Remove the 3 seat cover wires.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT SEATBACK PAD WITH COVER LH (for Sports Seat Type)

Detach the hooks.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull out the fasteners from the pockets.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Fastener
*b	Pocket
	Open in this Direction

Open the fasteners and fold back the cover.

Remove the nut and bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bracket

Detach the wire harness clamp.

Lift up the front seatback pad with cover LH in the removal direction shown in the illustration to remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE SEAT RECLINING ADJUSTER INSIDE COVER LH

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Slide in the removal direction shown in the illustration to detach the guides and remove the seat reclining adjuster inside cover LH.

REMOVE LH SEAT FRONT INNER SEATBACK EDGE PROTECTOR
Refer to PROCEDURE - Step 16 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 16 [05/2023 - ]

REMOVE SEATBACK CLIMATE CONTROL BLOWER LH

Detach the wire harness clamp and disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Wire Harness Clamp
*b	Hook

Detach the claws and hooks and remove the seatback climate control blower LH.

REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
Refer to PROCEDURE - Step 16 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 16 [05/2023 - ]
REMOVE FRONT SEATBACK HOOK
Refer to PROCEDURE - Step 17 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 17 [05/2023 - ]
REMOVE FRONT SEATBACK EDGE PROTECTOR
Refer to PROCEDURE - Step 18 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 18 [05/2023 - ]

REMOVE FRONT NO. 2 SEAT WIRE LH

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Standard Seat Type

Detach the wire harness clamps and remove the front No. 2 seat wire LH.

REMOVE RECLINING ADJUSTER EQUALIZING CABLE ASSEMBLY LH

Detach the cable clamps and clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cable End	*b	Cable Clamp
*c	Clamp	-	-
	Remove in this Direction	-	-

Turn the cable ends of the reclining adjuster equalizing cable assembly LH in the direction indicated by the arrow shown in the illustration to remove it.

for Standard Seat Type:

Pass the reclining adjuster equalizing cable assembly LH between the upper frame and wire of the front seatback frame sub-assembly LH and remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Reclining Adjuster Equalizing Cable Assembly LH
*a	Upper Frame
*b	Wire
	Remove in this Direction

for Sports Seat Type:

Pass the reclining adjuster equalizing cable assembly LH between the upper frame and lever bracket of the front seatback frame sub-assembly LH and remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Reclining Adjuster Equalizing Cable Assembly LH
*a	Upper Frame
*b	Lever Bracket
	Remove in this Direction

REMOVE RECLINING COVER PROTECTOR LH

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Pull in the removal direction shown in the illustration to detach the hook and remove the reclining cover protector LH.

REMOVE FRONT SEATBACK SUPPORT LH

Remove the nut and 4 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Nut
	Screw
	Remove in this Direction

Pull in the removal direction shown in the illustration to detach the guides and remove the front seatback support LH.

REMOVE FRONT SEAT AIRBAG ASSEMBLY LH
Refer to PROCEDURE - Step 20 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 20 [05/2023 - ]

REMOVE FRONT SEAT SIDE SUPPORT BRACKET LH

Remove the front seat side support bracket LH from the front seat airbag assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE FRONT SEATBACK SUPPORT RH

Remove the nut and 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Nut
	Screw
	Remove in this Direction

Pull in the removal direction shown in the illustration to detach the guides and remove the front seatback support RH.

REMOVE FRONT SEATBACK SUPPORT BRACKET RH

Remove the 2 nuts and front seatback support bracket RH.

REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Standard Seat Type)

Disconnect the connector.

Detach the wire harness clamp.

Detach the hooks.

Remove the separate type front seat cushion cover with pad.

Remove in this Direction

REMOVE FRONT SEAT CUSHION PAD WITH COVER LH (for Sports Seat Type)
HINT:

Use the same procedure described for the separate type front seat cushion cover with pad.

REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER (for Standard Seat Type)

Using a thin-bladed screwdriver, detach the hooks and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.

Protective Tape

REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY LH (for Standard Seat Type)
Refer to PROCEDURE - Step 9 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 9 [05/2023 - ]

REMOVE SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LH

Detach the wire harness clamp and disconnect the connector.

Remove the 2 bolts.

Detach the hook and remove the seat cushion climate control blower assembly LH.

REMOVE RECLINING ADJUSTER INSIDE COVER LH

Pull in the removal direction shown in the illustration to detach the claws and hook.

Remove in this Direction

Using a thin-bladed screwdriver, detach the claw and remove the connector.

HINT:

Tape the thin-bladed screwdriver tip before use.

Protective Tape

Detach the wire harness clamp and remove the reclining adjuster inside cover LH.

REMOVE RECLINING ADJUSTER INSIDE COVER LH

Pull in the removal direction shown in the illustration to detach the claws and hook and remove the reclining adjuster inside cover LH.

Remove in this Direction

REMOVE FRONT LOWER SEAT CUSHION SHIELD LH

Pull in the removal direction (1) shown in the illustration to detach the hook.

*a	Guide A
*b	Guide B
*c	Hook
	Remove in this Direction (1)
	Remove in this Direction (2)
	Remove in this Direction (3)
	Protective Tape

Using a thin-bladed screwdriver, detach the claw.
HINT:

Tape the thin-bladed screwdriver tip before use.
Pull in the removal direction (2) shown in the illustration to detach guide A.
Slide in the removal direction (3) shown in the illustration to detach guide B and remove the front lower seat cushion shield LH.

REMOVE FRONT LOWER SEAT CUSHION SHIELD LH

Pull in the removal direction (1) shown in the illustration to detach the hook.

*a	Guide A
*b	Guide B
*c	Hook
	Remove in this Direction (1)
	Remove in this Direction (2)
	Remove in this Direction (3)
	Protective Tape

Using a thin-bladed screwdriver, detach the claw.
HINT:

Tape the thin-bladed screwdriver tip before use.
Pull in the removal direction (2) shown in the illustration to detach guide A.
Slide in the removal direction (3) shown in the illustration to detach guide B and remove the front lower seat cushion shield LH.

REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH

Detach the wire harness clamp.

*a	Wire Harness Clamp
*b	Hook A
*c	Hook B
	Remove in this Direction (1)
	Remove in this Direction (2)

Pull in the removal direction (1) shown in the illustration to detach hook A.
Pull in the removal direction (2) shown in the illustration to detach hook B and remove the front seat cushion spring sub-assembly LH.

REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER LH

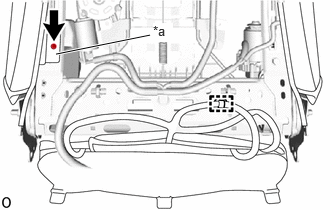

Detach the wire harness clamp and disconnect the connector.

Detach the wire harness clamp and disconnect the connector.

*A	for Driver Seat

for Driver Seat:

Disconnect the 2 connectors.

for Front Passenger Seat:
1. Disconnect the connector.

for Front Passenger Seat:

Detach the wire harness clamp and disconnect the 2 connectors.

Detach the wire harness clamps.

*a	Wire Harness Clamp
*b	Guide
	Remove in this Direction
	Protective Tape

Remove the 2 screws.
Using a thin-bladed screwdriver, detach the claw.
HINT:

Tape the thin-bladed screwdriver tip before use.
Slide in the removal direction shown in the illustration to detach the guides and remove the front seat cushion wire harness holder LH.

REMOVE FRONT SEAT WIRE LH

Detach the wire harness clamps.

Detach the claws and remove the 2 connectors.
Remove the front seat wire LH from the front seat cushion wire harness holder LH.

REMOVE FRONT NO. 2 SEAT WIRE LH (for Driver Seat)

Detach the wire harness clamp.

Detach the claw and remove the connector.
Remove the front No. 2 seat wire LH from the front seat cushion wire harness holder LH.

REMOVE FRONT SEAT WIRE RH (for Front Passenger Seat)

Detach the wire harness clamp and hook.

*a	Wire Harness Clamp
*b	Hook

Detach the claw and remove the connector.
Remove the front seat wire RH from the front seat cushion wire harness holder RH.

REMOVE FRONT LOWER SEAT CUSHION SHIELD

Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.

	Remove in this Direction
	Protective Tape

Slide in the removal direction shown in the illustration to detach the guide and remove the front lower seat cushion shield.

REMOVE POWER SEAT LIFTER MOTOR ASSEMBLY LH
Refer to PROCEDURE - Step 15 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 15 [05/2023 - ]
REMOVE POWER SEAT TILT MOTOR ASSEMBLY LH
Refer to PROCEDURE - Step 16 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 16 [05/2023 - ]

REMOVE UPPER SEAT TRACK RAIL COVER LH

Using a thin-bladed screwdriver, detach the claws and remove the upper seat track rail cover LH.

	Remove in this Direction
	Protective Tape

HINT:

Tape the thin-bladed screwdriver tip before use.

REMOVE UPPER SEAT TRACK RAIL COVER RH
HINT:

Use the same procedure described for the LH side.

REMOVE UPPER NO. 3 SEAT TRACK COVER

Using a thin-bladed screwdriver, detach the claws and remove the upper No. 3 seat track cover.

	Remove in this Direction
	Protective Tape

HINT:

Tape the thin-bladed screwdriver tip before use.

REMOVE UPPER NO. 4 SEAT TRACK COVER
HINT:

Use the same procedure described for the upper No. 3 seat track cover.
