Removal [03/2017 - 05/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [03/2017 - 05/2023]

  3. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH
    1. Disconnect the connector.

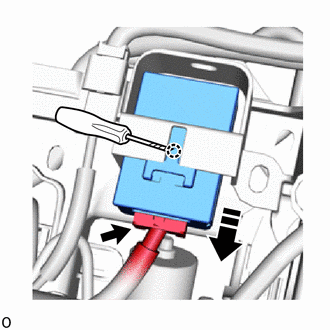

      GTY814668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Protective Tape
    2. Using a thin-bladed screwdriver, detach the claw.

      HINT:

      Tape the thin-bladed screwdriver tip before use.

    3. Slide in the removal direction shown in the illustration and remove the seat heater control sub-assembly LH.
