Removal [03/2017 - 05/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [03/2017 - 05/2023]

  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Seat)
    1. GTY802243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the wire harness clamps and disconnect the 2 connectors.

    2. Detach the claw and remove the connector from the front seat cushion wire harness holder LH.
    3. Detach the wire harness clamps.
      GTY788693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and front seat inner belt assembly LH.

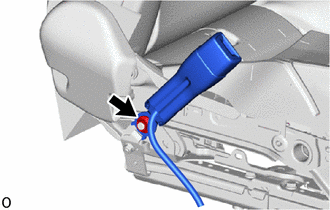

      GTY788694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the front seat belt anchor plate.
      GTY830249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Seat)
    1. Disconnect the 2 connectors.

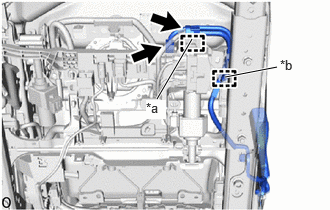

      GTY811015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector Clamp
      *b Wire Harness Clamp
    2. Detach the connector clamp and wire harness clamp.
    3. Detach the wire harness clamps.
      GTY834255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and front seat inner belt assembly RH.

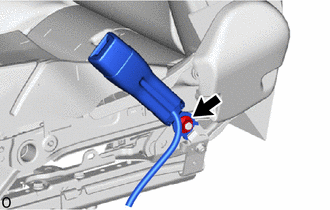

      GTY807008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the front seat belt anchor plate.
      GTY807005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
