Removal [03/2017 - 05/2023]: Procedure

PRECAUTION

WARNING:

Be sure to read precaution thoroughly before servicing.

Refer to PRECAUTION [03/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [03/2017 - 05/2023]

REMOVE FRONT SEAT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

Refer to REMOVAL [03/2017 - 05/2023]

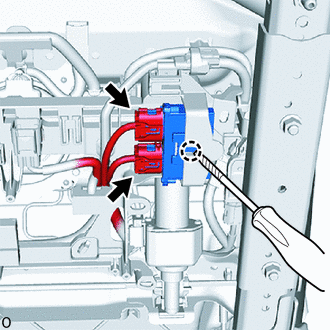

REMOVE OCCUPANT DETECTION ECU

Disconnect the 2 connectors.

Protective Tape

Using a screwdriver, detach the claw and remove the occupant detection ECU.
HINT:

Tape the screwdriver tip before use.
