Removal [03/2017 - 05/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [03/2017 - 05/2023]

  3. REMOVE FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 6 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - ]

  4. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 8 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 8 [04/2020 - ]

  5. REMOVE RECLINING POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 9 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 9 [04/2020 - ]

  6. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET LH

    Refer to PROCEDURE - Step 10 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - ]

  7. REMOVE SWITCH BEZEL
    1. Remove the 2 screws.

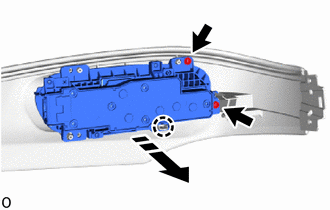

      GTY820085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Detach the claw and remove the switch bezel together with the front power seat switch LH.
  8. REMOVE FRONT POWER SEAT SWITCH LH
    1. Remove the 4 screws and front power seat switch LH from the switch bezel.
      GTY824604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
