Removal [03/2017 - 05/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [03/2017 - 05/2023]

  3. REMOVE POSITION CONTROL ECU ASSEMBLY

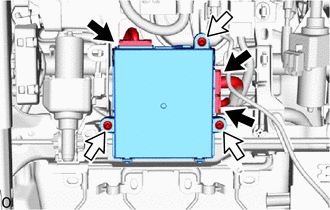

    1. Disconnect the 3 connectors.
      GTY790563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Screw
    2. Remove the 3 screws and position control ECU assembly.
