Home >> Lexus >> 2020 >> LS 500h AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical System - Service Information (3 Of 5) >> Engine Assembly >> Removal [09/2019 - 10/2020] >> Procedure

Removal [09/2019 - 10/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [09/2019 - 10/2020]

  2. HEIGHT OFFSET

    Refer to PRECAUTION [10/2017 - ]

  3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [10/2017 - 10/2020]

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2018 - 10/2020]

  6. PARKING LOCK FORCED RELEASE

    Refer to OPERATION METHOD [10/2017 - 10/2023]

  7. REMOVE INVERTER COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  8. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 3

  9. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2

  10. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 4

  11. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 8

  12. REMOVE V-BANK COVER SUB-ASSEMBLY
    1. Lift the V-bank cover sub-assembly to detach the 3 clips in the order shown in the illustration, and remove the V-bank cover sub-assembly.
      GTY781069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Areas to place hands when lifting cover
      NOTE:

      If the V-bank cover sub-assembly is lifted rearward or forward and to the right or left at the same time, the V-bank cover sub-assembly may be damaged.

  13. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [09/2018 - 10/2020]

  14. CHECK TERMINAL VOLTAGE

    Refer to PROCEDURE - Step 13

  15. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 4

  16. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  17. REMOVE FRONT WHEEL

    Refer to PROCEDURE - Step 2

  18. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for 2WD)
    1. Remove the 15 screws, 3 clips and No. 1 engine under cover assembly.
      GTY811442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE TRANSMISSION UNDER COVER (for 2WD)
    1. Remove the 2 bolts, 2 screws and transmission under cover.
      GTY796464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
  20. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for 2WD)
    1. Remove the 10 bolts, clip and No. 2 engine under cover assembly.
      GTY811438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)
    1. Remove the 4 bolts and front suspension member brace.
      GTY811431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for 2WD)
    1. GTY835226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 bolts and strut bar bracket support sub-assembly.

  23. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for AWD)
    1. Remove the 12 screws, 3 clips and No. 1 engine under cover assembly.
      GTY811439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE TRANSMISSION UNDER COVER (for AWD)
    1. Remove the 4 bolts, screw and transmission under cover.
      GTY833192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
  25. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for AWD)
    1. Remove the 11 bolts, and No. 2 engine under cover assembly.
      GTY811429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FRONT SUSPENSION MEMBER BRACE (for AWD)
    1. Remove the 4 bolts and front suspension member brace.
      GTY811432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for AWD)
    1. GTY835224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 7 bolts and strut bar bracket support sub-assembly.

  28. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 4

  29. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 8

  30. DRAIN COOLANT (for Inverter)

    Refer to PROCEDURE - Step 6

  31. DRAIN HYBRID TRANSMISSION FLUID
    1. for 2WD:

      Refer to REPLACEMENT [10/2017 - 10/2020]

    2. for AWD:

      Refer to REPLACEMENT [10/2017 - 10/2020]

  32. DRAIN DIFFERENTIAL OIL (for AWD)

    Refer to PROCEDURE - Step 2

  33. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  34. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 6

  35. DISCONNECT NO. 2 PCV HOSE

    Refer to PROCEDURE - Step 7

  36. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 9

  37. REMOVE INVERTER TERMINAL COVER

    Refer to PROCEDURE - Step 15

  38. DISCONNECT MOTOR CABLE

    Refer to PROCEDURE - Step 17

  39. DISCONNECT GENERATOR CABLE

    Refer to PROCEDURE - Step 16

  40. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. Disconnect the No. 1 fuel vapor feed hose from the purge VSV.
      GTY783637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. DISCONNECT NO. 1 RADIATOR HOSE

    Refer to PROCEDURE - Step 29

  42. DISCONNECT NO. 3 RADIATOR HOSE

    Refer to PROCEDURE - Step 30

  43. DISCONNECT INLET HEATER WATER HOSE
    1. Slide the clamp and disconnect the inlet heater water hose from the No. 3 water by-pass hose assembly.
      GTY829143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not apply excessive force to the heater water hose outlet.

  44. DISCONNECT OUTLET HEATER WATER HOSE
    1. Slide the clamp and disconnect the outlet heater water hose from the No. 2 water by-pass pipe assembly.
      GTY829142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not apply excessive force to the heater water hose outlet.

  45. DISCONNECT WATER HOSE SUB-ASSEMBLY
    1. for 2WD:

      Refer to PROCEDURE - Step 15

    2. for AWD:

      Refer to PROCEDURE - Step 14

  46. DISCONNECT NO. 2 OIL COOLER OUTLET HOSE

    Refer to PROCEDURE - Step 26

  47. DISCONNECT TRANSMISSION OIL COOLER HOSE

    Refer to PROCEDURE - Step 27

  48. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. for 2WD:

      Refer to PROCEDURE - Step 14

    2. for AWD:

      Refer to PROCEDURE - Step 12

  49. DISCONNECT SUCTION HOSE SUB-ASSEMBLY A
    1. for 2WD:

      Refer to PROCEDURE - Step 15

    2. for AWD:

      Refer to PROCEDURE - Step 11

  50. REMOVE NO. 2 RELAY BLOCK COVER
    1. Detach the 4 claws and remove the No. 2 relay block cover.
      GTY783634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE ECM

    Refer to PROCEDURE - Step 5

  52. DISCONNECT ENGINE WIRE
    1. Disconnect the 3 connectors.
      GTY783635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and 2 claws and disconnect the engine wire from the relay block.
      GTY783636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. DISCONNECT NO. 3 ENGINE ROOM WIRE

    HINT:

    After disconnecting the wire harness, secure it with tape or equivalent to keep it out of the way.

    1. Disconnect the 2 connectors and No. 3 engine room wire.

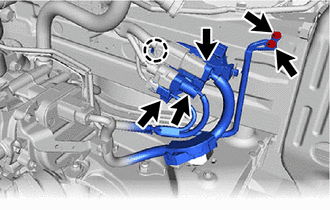

      GTY964959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and air conditioning wire.
    3. Detach the claw and disconnect the connector holder.
    4. Remove the 2 bolts and disconnect the No. 3 engine room wire.
  54. DISCONNECT NO. 3 ENGINE WIRE
    1. Remove the bolt, 2 clamps and disconnect the No. 3 engine wire.
      GTY783625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. Detach the clamp and disconnect the fuel tube sub-assembly from the fuel main tube connector.
      GTY829140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2017 - 10/2020]

  56. DISCONNECT NO. 2 FUEL TUBE SUB-ASSEMBLY
    1. Detach the clamp and disconnect the No. 2 fuel tube sub-assembly from the fuel pipe.
      GTY783406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2017 - 10/2020]

  57. REMOVE FRONT BUMPER COVER
    1. for Sport Package:

      Refer to REMOVAL [09/2018 - 10/2020]

    2. except Sport Package:

      Refer to REMOVAL [09/2018 - 10/2020]

  58. REMOVE RADIATOR SUPPORT EXTENSION LH
    1. Open a part of the front fender liner LH as shown in the illustration.
      GTY829719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws, detach the 2 claws and remove the radiator support extension LH from the radiator support opening cover.
      GTY786281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE RADIATOR SUPPORT EXTENSION RH
    1. Open a part of the front fender liner RH as shown in the illustration.
      GTY786279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws, detach the 2 claws and remove the radiator support extension RH from the radiator support opening cover.
      GTY786280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE RADIATOR SUPPORT OPENING COVER
    1. Remove the 4 screws, detach the 3 claws and remove the radiator support opening cover from the front crossmember sub-assembly.
      GTY786444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 6 nuts and No. 2 front bumper reinforcement sub-assembly.
      GTY835225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE REAR FRAME RAIL SUB-ASSEMBLY
    1. for 2WD:
      GTY811435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 6 bolts, 4 nuts and rear frame rail sub-assembly.
    2. for AWD:
      GTY811433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 6 bolts and rear frame rail sub-assembly.
  63. REMOVE REAR FLOOR SIDE MEMBER COVER LH

    Refer to PROCEDURE - Step 1

  64. REMOVE REAR FLOOR SIDE MEMBER COVER RH

    Refer to PROCEDURE - Step 2

  65. REMOVE NO. 2 FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  66. REMOVE FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  67. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  68. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 6

  69. REMOVE NO. 1 CENTER FLOOR HEAT INSULATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  70. REMOVE NO. 2 FUEL TANK PROTECTOR

    Refer to PROCEDURE - Step 3

  71. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 4

  72. DISCONNECT STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 13

  73. DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 15

  74. DISCONNECT FRONT SKID CONTROL SENSOR WIRE LH (for 2WD)

    Refer to PROCEDURE - Step 4

  75. DISCONNECT FRONT SKID CONTROL SENSOR WIRE RH (for 2WD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  76. DISCONNECT FRONT SPEED SENSOR LH (for AWD)

    Refer to PROCEDURE - Step 7

  77. DISCONNECT FRONT SPEED SENSOR RH (for AWD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  78. REMOVE FRONT AXLE SHAFT NUT LH (for AWD)

    Refer to PROCEDURE - Step 10

  79. REMOVE FRONT AXLE SHAFT NUT RH (for AWD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  80. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Refer to REMOVAL [10/2017 - ]

  81. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  82. DISCONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY LH
    1. for 2WD:

      Refer to PROCEDURE - Step 5

    2. for AWD:

      Refer to PROCEDURE - Step 8

  83. DISCONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY RH

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  84. REMOVE FRONT DISC LH

    Refer to PROCEDURE - Step 8

  85. REMOVE FRONT DISC RH

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  86. REMOVE FRONT DISC BRAKE DUST COVER LH

    Refer to PROCEDURE - Step 7

  87. REMOVE FRONT DISC BRAKE DUST COVER RH

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  88. DISCONNECT TIE ROD ASSEMBLY LH
    1. for 2WD:

      Refer to PROCEDURE - Step 14

    2. for AWD:

      Refer to PROCEDURE - Step 16

  89. DISCONNECT TIE ROD ASSEMBLY RH

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  90. DISCONNECT FRONT STABILIZER LINK ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 6

  91. DISCONNECT FRONT STABILIZER LINK ASSEMBLY RH (for 2WD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  92. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 13

  93. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for 2WD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  94. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY LH (for AWD)
    1. Remove the bolt. Then disconnect the absorber and absorber bracket.
      GTY811424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  95. DISCONNECT FRONT SHOCK ABSORBER ASSEMBLY RH (for AWD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  96. DISCONNECT STEERING KNUCKLE LH

    Refer to PROCEDURE - Step 3

  97. DISCONNECT STEERING KNUCKLE RH

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  98. REMOVE STEERING KNUCKLE LH (for 2WD)
    1. Remove the 2 bolts, 2 nuts and steering knuckle LH.
      GTY835816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  99. REMOVE STEERING KNUCKLE RH (for 2WD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  100. REMOVE STEERING KNUCKLE LH (for AWD)

    Refer to PROCEDURE - Step 15

  101. REMOVE STEERING KNUCKLE RH (for AWD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  102. REMOVE ENGINE SIDE COVER LH (for 2WD)

    Refer to PROCEDURE - Step 9

  103. REMOVE ENGINE SIDE COVER RH (for 2WD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  104. REMOVE REAR LOWER ARM MOUNTING REINFORCEMENT SUB-ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 10

  105. REMOVE REAR LOWER ARM MOUNTING REINFORCEMENT SUB-ASSEMBLY RH (for 2WD)

    HINT:

    Remove the RH side following the same procedure as for the LH side.

  106. INSTALL ENGINE HANGER
    1. Install the No. 1 engine hanger and No. 2 engine hanger with the 4 bolts as shown in the illustration.

      Torque: 33 N.m (337 kgf/cm, 24 ft.lbf)

      GTY634306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a No. 1 engine hanger
      *b No. 2 engine hanger

      HINT:

      No. 1 Engine Hanger 12281 - 31070
      No. 2 Engine Hanger 12282 - 31161
      Bolt 91671 - 10825
  107. DISCONNECT NO. 2 PARKING LOCK RELEASE CABLE ASSEMBLY
    1. Detach the 2 claws and disconnect the cover from the No. 2 parking lock release cable assembly as shown in the illustration.
      GTY787432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cover
      Disconnect
    2. Disconnect the parking lock release lever assembly cable end from the No. 2 parking lock release cable assembly cable end.
      GTY788488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Parking Lock Release Lever Assembly Cable End
      *2 No. 2 Parking Lock Release Cable Assembly Cable End
  108. DISCONNECT NO. 2 GROUND WIRE
    1. for 2WD:
      GTY828505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 2 ground wire.
    2. for AWD:
      GTY835222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and disconnect the No. 2 ground wire.
  109. REMOVE ENGINE AND TRANSMISSION ASSEMBLY (for 2WD)
    1. Set the engine on an engine lifter.
      GTY827192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Wooden Block or Plate Attachments
      NOTE:
      • Place wooden blocks or plate lift attachments so that the engine is level.
      • With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.
      • Never install attachments to the oil pan of the engine assembly or transmission as doing so may deform the oil pan.
    2. Remove the 6 bolts, and then separate the rear engine mounting member.
      GTY783629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and 2 nuts shown in the illustration.
      GTY799454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    4. Operate the engine lifter, then slowly remove the engine and transmission assembly from the vehicle.
      NOTE:
      • Make sure the engine is clear of all wiring and hoses.
      • While lowering the engine from the vehicle, do not allow it to contact the vehicle.
    5. Attach an engine sling device and hang the engine with a chain block.
      NOTE:

      Pay attention to the angle of the sling device as the engine assembly or engine hangers may be damaged or deformed if the angle is incorrect.

  110. REMOVE ENGINE AND TRANSMISSION ASSEMBLY (for AWD)
    1. Set the engine on an engine lifter.
      GTY826254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Wooden Block or Plate Attachments
      NOTE:
      • Place wooden blocks or plate lift attachments so that the engine is level.
      • With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.
      • Never install attachments to the oil pan of the engine assembly or transmission as doing so may deform the oil pan.
    2. Remove the 6 bolts, and then separate the rear engine mounting member.
      GTY785707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and 2 nuts shown in the illustration.
      GTY785589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    4. Operate the engine lifter, then slowly remove the engine and transmission assembly from the vehicle.
      NOTE:
      • Make sure the engine is clear of all wiring and hoses.
      • While lowering the engine from the vehicle, do not allow it to contact the vehicle.
    5. Attach an engine sling device and hang the engine with a chain block.
      NOTE:

      Pay attention to the angle of the sling device as the engine assembly or engine hangers may be damaged or deformed if the angle is incorrect.

  111. REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE (for 2WD)

    Refer to PROCEDURE - Step 9

  112. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. for 2WD:
      GTY779106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, then remove the engine oil level dipstick guide.
    2. for AWD:
      GTY833705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, then remove the engine oil level dipstick guide.
    3. Remove the O-ring from the engine oil level dipstick guide.
  113. REMOVE NO. 1 EGR PIPE

    Refer to PROCEDURE - Step 17

  114. DISCONNECT AIR FUEL RATIO SENSOR

    Refer to PROCEDURE - Step 34

  115. REMOVE EXHAUST MANIFOLD ASSEMBLY LH (for 2WD)

    Refer to PROCEDURE - Step 36

  116. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (for 2WD)

    Refer to PROCEDURE - Step 38

  117. REMOVE EXHAUST MANIFOLD ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 37

  118. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (for AWD)

    Refer to PROCEDURE - Step 39

  119. REMOVE FRONT PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 3

  120. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. for 2WD:

      Refer to PROCEDURE - Step 19

    2. for AWD:

      Refer to PROCEDURE - Step 21

  121. REMOVE HYBRID VEHICLE TRANSMISSION ASSEMBLY
    1. for 2WD:

      Refer to REMOVAL [09/2018 - 10/2020]

    2. for AWD:

      Refer to REMOVAL [09/2018 - 10/2020]

  122. REMOVE TRANSMISSION INPUT DAMPER COVER ASSEMBLY

    Refer to PROCEDURE - Step 2

  123. REMOVE FLYWHEEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  124. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH (for AWD)

    Refer to PROCEDURE - Step 4

  125. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (for AWD)

    Refer to PROCEDURE - Step 5

  126. REMOVE FRONT DIFFERENTIAL CARRIER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 3

  127. DISCONNECT FRONT FRAME CROSSMEMBER SUB-ASSEMBLY (for 2WD)
    1. Remove the 2 bolts, then disconnect the front suspension crossmember sub-assembly from the engine.
      GTY778436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH Side
      *b RH Side
  128. DISCONNECT FRONT FRAME ASSEMBLY (for AWD)
    1. Remove the 2 bolts, then disconnect the front suspension crossmember sub-assembly from the engine.
      GTY832064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH Side
      *b RH Side
  129. REMOVE FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Only perform this procedure when replacement of the engine mounting insulator is necessary.

    1. for 2WD:
      GTY785534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH Side
      *b RH Side
      1. Remove the 2 nuts and front engine mounting insulator RH and LH.
    2. GTY791020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a LH Side
      *b RH Side

      for AWD:

      1. Remove the 4 nuts and front engine mounting insulator RH and LH.
  130. REMOVE REAR ENGINE MOUNTING MEMBER
    1. for 2WD:
      GTY834860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 nuts and rear engine mounting member from the rear engine mounting insulator.
    2. for AWD:
      GTY785657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 nuts and rear engine mounting member from the rear engine mounting insulator.
  131. REMOVE REAR ENGINE MOUNTING INSULATOR
    1. for 2WD:

      Refer to PROCEDURE - Step 21

    2. for AWD:

      Refer to PROCEDURE - Step 24

  132. INSTALL ENGINE ON ENGINE STAND
    1. Install the engine to an engine stand with bolts.
      NOTE:
      • Pay attention to the angle of the sling device as the engine assembly or engine hangers may be damaged or deformed if the angle is incorrect.
      • With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.
    2. Remove the 4 bolts and 2 engine hangers.
scientia non olet · About LEMON Manuals
