Removal [10/2017 - ]: Procedure

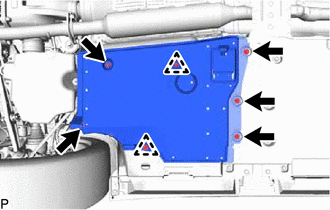

  1. REMOVE REAR FLOOR SIDE MEMBER COVER LH
    1. Remove the 2 clips, 3 bolts, screw, nut and the rear floor side member cover LH.
      GTY823709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

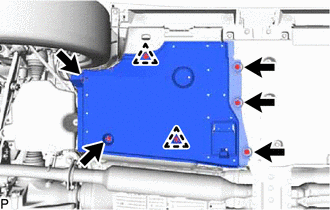

  2. REMOVE REAR FLOOR SIDE MEMBER COVER RH
    1. Remove the 2 clips, 3 bolts, screw, nut and the rear floor side member cover RH.
      GTY837942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

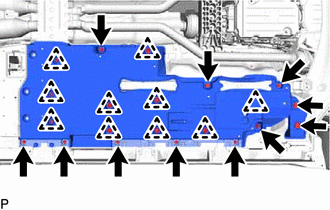

  3. REMOVE NO. 2 FLOOR BOARD SUB-ASSEMBLY
    1. Remove the 10 clips, 7 grommets, 2 nuts, 2 bolts and the No. 2 floor board sub-assembly.
      GTY823711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

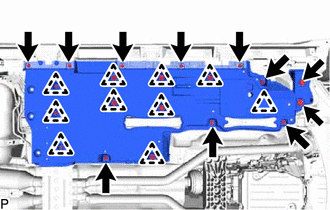

  4. REMOVE FLOOR BOARD SUB-ASSEMBLY
    1. Remove the 10 clips, 7 grommets, 2 nuts, 2 bolts and the floor board sub-assembly.
      GTY823710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

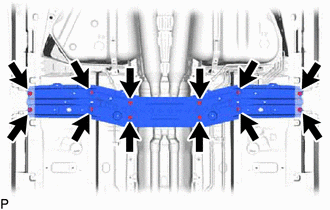

  5. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY
    1. Remove the 12 bolts and the front center floor brace sub-assembly.
      GTY821063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT EXHAUST PIPE ASSEMBLY

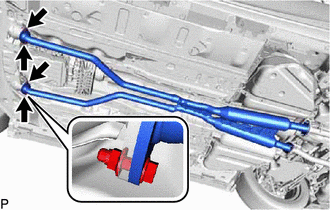

    1. Remove the 4 bolts and 4 nuts to disconnect the front exhaust pipe assembly from the exhaust manifold assembly LH and exhaust manifold assembly RH.
      GTY821060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

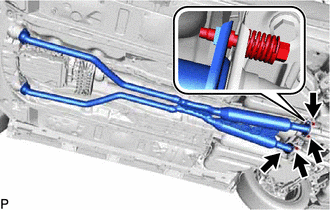

    2. Remove the 4 bolts, 4 compression springs and front exhaust pipe assembly from the exhaust tailpipe assembly.
      GTY821059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 gaskets.

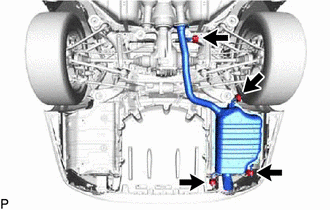

  7. REMOVE EXHAUST TAILPIPE LH
    1. Remove the 4 exhaust pipe supports and exhaust tailpipe LH.
      GTY821057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

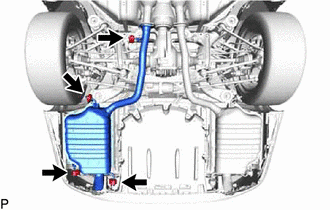

  8. REMOVE EXHAUST TAILPIPE ASSEMBLY
    1. Remove the 4 exhaust pipe supports and exhaust tailpipe assembly.
      GTY821058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
