Removal [10/2017 - 10/2023]: Procedure

  1. AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)

    Refer to PRECAUTION [10/2017 - ]

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 12 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 12 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 12 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - 10/2023]

  3. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 1 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 1 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - 10/2023]

  4. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 10/2023]

  5. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - 10/2023]

  6. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 18 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 18 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 18 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 18 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 18 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 10/2023]

  7. REMOVE TRANSMISSION UNDER COVER

    Refer to PROCEDURE - Step 19 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 19 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 19 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 19 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 10/2023]

  8. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 20 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 20 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 20 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023]

  9. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 8

  10. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH

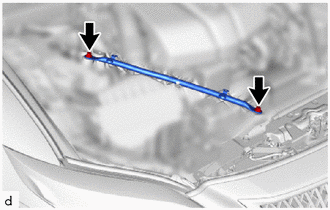

    1. Remove the 2 bolts and radiator support to crossmember brace sub-assembly RH.
      GTY834649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 8

  12. REMOVE AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 6 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023]

  13. DISCONNECT NO. 3 ENGINE WIRE

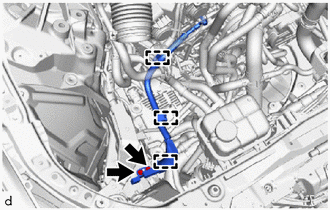

    1. Remove the 2 bolts.
      GTY805204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and disconnect the No. 3 engine wire.
  14. REMOVE OIL PUMP MOTOR CONTROLLER ASSEMBLY

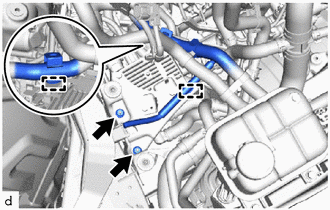

    1. Detach the clamp.
      GTY805200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts.

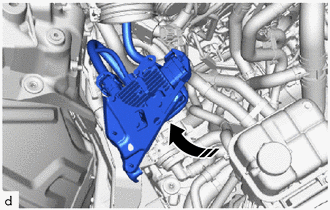

    3. Move the oil pump motor controller assembly to the position shown in the illustration.
      GTY779502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Movement Direction
  15. REMOVE HEATER ACCESSORY ASSEMBLY

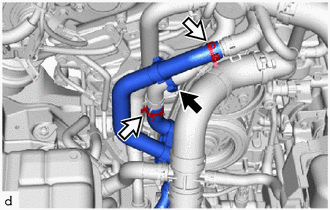

    1. Disconnect the clamps shown in the illustration.
      GTY801326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clamp
      Clip
    2. Using pliers, grip the claws of the 2 hose clips and slide the hose clip to disconnect the water pipe sub-assembly.
      NOTE:
      • Do not apply excessive force to the water pipe sub-assembly.
      • Prepare a drain pan or cloth in case the coolant leaks.

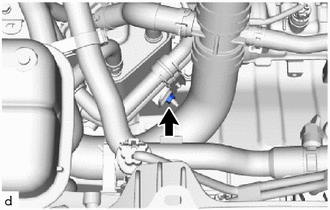

    3. Remove the nut.
      GTY805198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

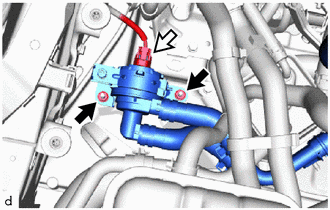

    4. Disconnect the connector.
      GTY817312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Connector
    5. Remove the 2 nuts.

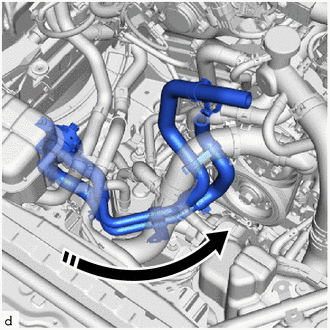

    6. Move the heater accessory assembly (with water pipe sub-assembly) to the center of the engine room and remove it as shown in the illustration.
      GTY781302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    7. Using pliers, grip the claws of the 2 hose clips and slide the hose clip to remove the water pipe sub-assembly.
      GTY805195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the water pipe sub-assembly.
      • Prepare a drain pan or cloth in case the coolant leaks.
    8. Remove the 4 hose clips from the water pipe sub-assembly.
      GTY805191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
