Removal [10/2017 - 10/2020]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 12 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 12 [09/2019 - 10/2020]

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

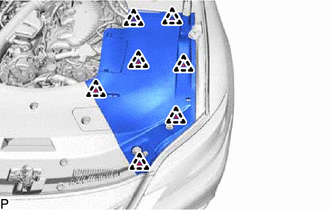

    1. Detach the 7 clips to remove the upper radiator support seal.
      GTY820816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE RADIATOR COVER PLATE
    1. Detach the 7 clips to remove the radiator cover plate.
      GTY820831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LOWER RADIATOR AIR DEFLECTOR
    1. Detach the 7 clips to remove the lower radiator air deflector.
      GTY820828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Remove the 2 bolts and radiator support to crossmember brace sub-assembly LH.
      GTY829550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
    1. Remove the 2 bolts and radiator support to crossmember brace sub-assembly RH.
      GTY785506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 8

  8. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 9

  9. REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE (for 2WD)
    1. Remove the engine oil level dipstick from the No. 2 engine oil level dipstick guide.
    2. Remove the bolt and No. 2 engine oil level dipstick guide.
      GTY819178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the No. 2 engine oil level dipstick guide.
  10. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE (for AWD)

    Refer to PROCEDURE - Step 112 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 112 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 112 [09/2019 - 10/2020]

  11. REMOVE FRONT FENDER APRON INSULATOR LH
    1. Remove the 3 bolts and front fender apron insulator LH.
      GTY836947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 18 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 18 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 18 [09/2019 - 10/2020]

  13. REMOVE TRANSMISSION UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 19 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 19 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 19 [09/2019 - 10/2020]

  14. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 20 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 20 [09/2019 - 10/2020]

  15. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 21 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 21 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 21 [09/2019 - 10/2020]

  16. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 22 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 22 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 22 [09/2019 - 10/2020]

  17. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 23 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 23 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 23 [09/2019 - 10/2020]

  18. REMOVE TRANSMISSION UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 24 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 24 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 24 [09/2019 - 10/2020]

  19. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 25 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 25 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 25 [09/2019 - 10/2020]

  20. REMOVE FRONT SUSPENSION MEMBER BRACE (for AWD)

    Refer to PROCEDURE - Step 26 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 26 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 26 [09/2019 - 10/2020]

  21. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 27 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 27 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 27 [09/2019 - 10/2020]

  22. REMOVE REAR FLOOR SIDE MEMBER COVER LH

    See step  1

  23. REMOVE REAR FLOOR SIDE MEMBER COVER RH

    See step  2

  24. REMOVE NO. 2 FLOOR BOARD SUB-ASSEMBLY

    See step  3

  25. REMOVE FLOOR BOARD SUB-ASSEMBLY

    See step  4

  26. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

    See step  5

  27. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    See step  6

  28. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
    1. Remove the 2 bolts and No. 1 exhaust pipe support bracket sub-assembly.
      GTY820827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE ENGINE SIDE COVER RH (for 2WD)
    1. Detach the 4 clips to remove the engine side cover RH.
      GTY819167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR LOWER ARM MOUNTING REINFORCEMENT SUB-ASSEMBLY RH (for 2WD)
    1. Remove the 4 bolts and rear lower arm mounting reinforcement sub-assembly RH.
      GTY819165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE FENDER APRON BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 26 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 26 [09/2018 - 10/2020]

  32. REMOVE FENDER APRON BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 14 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 14 [09/2018 - 10/2020]

  33. REMOVE NO. 1 EGR PIPE

    Refer to PROCEDURE - Step 17 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 17 [09/2018 - 10/2020]

  34. DISCONNECT AIR FUEL RATIO SENSOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. for Bank 1 Sensor 1:
      1. Disconnect the connector.
        GTY819163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 3 wire harness clamps.
    2. for Bank 1 Sensor 2:
      1. Disconnect the connector.
        GTY819174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 2 wire harness clamps.
    3. for Bank 2 Sensor 1:
      1. GTY836946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disconnect the connector.

      2. Detach the 4 wire harness clamps.
    4. for Bank 2 Sensor 2:
      1. Disconnect the connector.
        GTY832558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 2WD
        *B for AWD
      2. Detach the 3 wire harness clamps.
  35. REMOVE FRONT PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 5

  36. REMOVE EXHAUST MANIFOLD ASSEMBLY LH (for 2WD)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 4 nuts, exhaust manifold assembly LH and gasket.
      GTY820823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the 2 air fuel ratio sensors from the exhaust manifold assembly LH.
      • SST: 09224-00012
      GTY819320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Bank 2 Sensor 1 Side
      *B Bank 2 Sensor 2 Side
  37. REMOVE EXHAUST MANIFOLD ASSEMBLY LH (for AWD)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 4 nuts, exhaust manifold assembly LH and gasket.
      GTY837305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the 2 air fuel ratio sensors from the exhaust manifold assembly LH.
      • SST: 09224-00012
      GTY816467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Bank 2 Sensor 1 Side
      *B Bank 2 Sensor 2 Side
  38. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (for 2WD)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 4 nuts, exhaust manifold assembly RH and gasket.
      GTY820817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the 2 air fuel ratio sensors from the exhaust manifold assembly RH.
      • SST: 09224-00012
      GTY796094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Bank 1 Sensor 1 Side
      *B Bank 1 Sensor 2 Side
  39. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (for AWD)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 4 nuts, exhaust manifold assembly RH and gasket.
      GTY820817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the 2 air fuel ratio sensors from the exhaust manifold assembly RH.
      • SST: 09224-00012
      GTY799833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Bank 1 Sensor 1 Side
      *B Bank 1 Sensor 2 Side
  40. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 6 bolts and 2 No. 1 exhaust manifold heat insulators from the exhaust manifold assembly.
      GTY834242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
  41. REMOVE NO. 1 MANIFOLD CONVERTER INSULATOR (for 2WD)
    1. Remove the 8 bolts and 2 No. 1 manifold converter insulators from the exhaust manifold assembly.
      GTY815176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
  42. REMOVE NO. 1 MANIFOLD CONVERTER INSULATOR (for AWD)
    1. Remove the 8 bolts and 2 No. 1 manifold converter insulators from the exhaust manifold assembly.
      GTY825999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
  43. REMOVE NO. 2 MANIFOLD CONVERTER INSULATOR (for 2WD)
    1. Remove the 8 bolts and 2 No. 2 manifold converter insulators from the exhaust manifold assembly.
      GTY780323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
  44. REMOVE NO. 2 MANIFOLD CONVERTER INSULATOR (for AWD)
    1. Exhaust manifold assembly LH side:
      GTY787467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Assembly LH Side
      *b Exhaust Manifold Assembly RH Side
      1. Remove the 3 bolts and No. 2 manifold converter insulator from the exhaust manifold assembly.
    2. Exhaust manifold assembly RH side:
      1. Remove the 4 bolts and No. 2 manifold converter insulator from the exhaust manifold assembly.
