Removal [10/2017 - 10/2020]: Procedure

Refer to PRECAUTION [10/2017 - ]

Refer to PROCEDURE - Step 3 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 3 [09/2018 - 10/2020]

Refer to PROCEDURE - Step 2

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the nut and sensor clamp.

2. for LH side:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the front skid control sensor wire connector.
   2. Remove the bolt and sensor clamp.
3. for RH side:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the pad wear indicator connector.
   2. Disconnect the front skid control sensor wire connector.
   3. Remove the bolt and sensor clamp.

1. for RH side:
   1. Detach the guide to remove the pad wear indicator assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the bolt and front flexible hose from front flexible hose bracket LH.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the bolt and disconnect the front flexible hose bracket LH from steering knuckle LH.

4. Remove the bolt and bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Loosen the bolts on the lower side of the disc brake cylinder assembly LH and remove the bolts on the top side.

   NOTE:

   Do not excessively loosen the bolts on the lower side of the disc brake cylinder assembly LH.

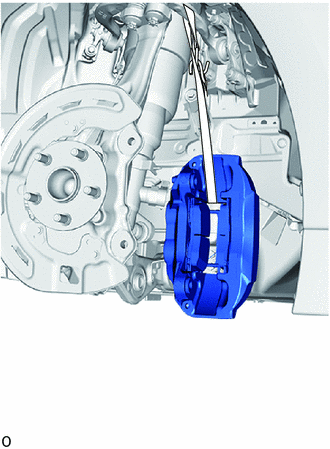

6. Tilt the disc brake cylinder assembly LH and install SST as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09727-00110
7. Install SST to the No. 2 front suspension upper arm assembly LH.
   NOTE:

   The No. 2 front suspension upper arm assembly LH may become damaged if the metal part of SST contacts it. Therefore, install it so that the metal part does not contact the No. 2 front suspension upper arm assembly LH.

8. Remove the bolt on the lower side of the disc brake cylinder assembly LH and disconnect it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not apply excessive force to the flexible hose.
   • If there is no looseness in the flexible hose, adjust the length of SST.

• for 6-Pot Caliper:

  Refer to PROCEDURE - Step 7

• except 6-Pot Caliper:

  Refer to PROCEDURE - Step 8

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the 3 bolts and front disc brake dust cover LH.

Refer to PROCEDURE - Step 14 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 14 [09/2018 - 10/2020]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the clip and nut.

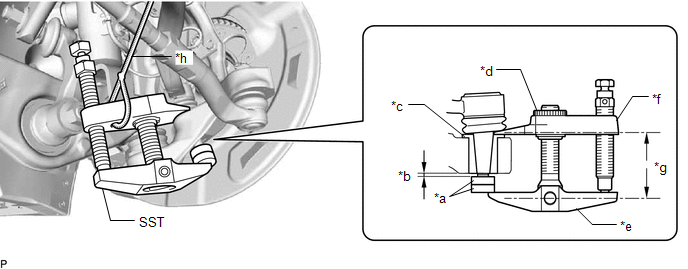

2. Install 2 SST (spacer A) onto the front lower suspension arm assembly LH so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers.
   • SST: 09960-20010
     1. 09961-02050

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	SST (Spacer A)	*b	1 mm (0.0394 in.)
   *c	Spacer	*d	Center Nut
   *e	Body	*f	Claw
   *g	Parallel	*h	String

   NOTE:

   • Make sure to install the spacers (SST spacer A) as the steering knuckle spacer may shift.
   • As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.0394 in.) or less.
3. Using SST, disconnect the front lower suspension arm assembly LH from the steering knuckle assembly LH.
   • SST: 09960-20010
     1. 09961-02010
   NOTE:

   • Apply molybdenum grease to the bolt threads and end of SST bolt.
   • Do not damage the dust cover.
   • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
   • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.

Refer to PROCEDURE - Step 20 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 20 [09/2019 - 10/2020]

Refer to PROCEDURE - Step 9

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 14

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Disconnect the bolt, nut and lower No. 2 suspension arm assembly LH.

Refer to PROCEDURE - Step 3

1. Using a hexagon socket wrench 12 mm, remove the 4 bolts and front axle hub sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the disc brake air guide plate from the steering knuckle LH.
