Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AIR FUEL RATIO SENSOR

    Refer to REMOVAL [10/2017 - 09/2020] , or refer to REMOVAL [09/2020 - ]

  2. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 13 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 13 [09/2020 - ]

  3. REMOVE REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)

    Refer to PROCEDURE - Step 2 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]

  4. REMOVE REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY (for Full Cover Type)

    Refer to PROCEDURE - Step 3 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - ]

  5. REMOVE FRONT CENTER FLOOR BRACE

    See step  5

  6. DISCONNECT HEATED OXYGEN SENSOR

    See step  4 [10/2017 - 09/2020], or see step  4 [09/2020 - ]

  7. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    See step  5 [10/2017 - 09/2020], or see step  5 [09/2020 - ]

  8. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY

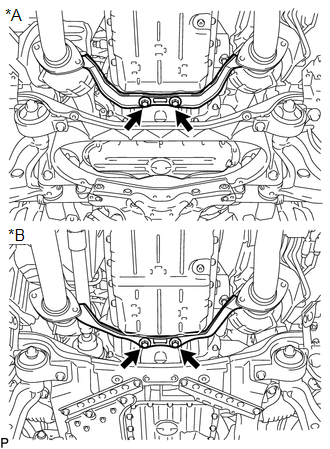

    1. Remove the 2 bolts and No. 1 exhaust pipe support bracket sub-assembly from the automatic transmission with transfer assembly.
      GTY788574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
  9. REMOVE FRONT PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 3

  10. REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

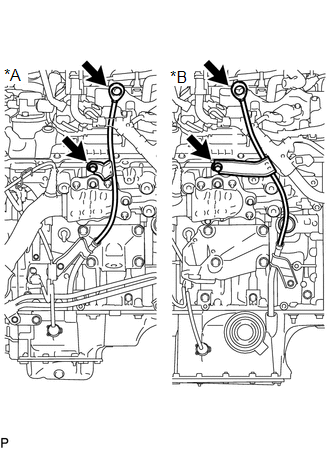

    1. Remove the engine oil level dipstick.
      GTY798808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for 4WD
    2. Remove the bolt and No. 2 engine oil level dipstick guide from the cylinder block.
    3. Remove the O-ring from the No. 2 engine oil level dipstick guide.
  11. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

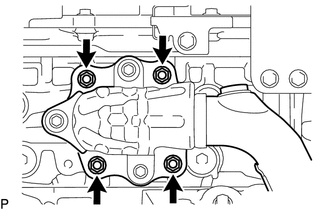

    1. Using a 12 mm deep socket wrench, remove the 4 nuts and exhaust manifold sub-assembly LH (TWC: Front Catalyst).
      GTY619111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the cylinder head sub-assembly.
  12. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

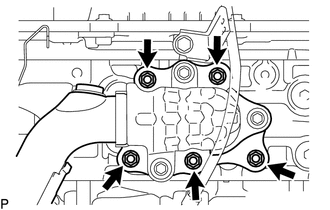

    1. Using a 12 mm deep socket wrench, remove the 5 nuts and exhaust manifold sub-assembly RH (TWC: Front Catalyst).
      GTY619112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the cylinder head sub-assembly.
  13. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

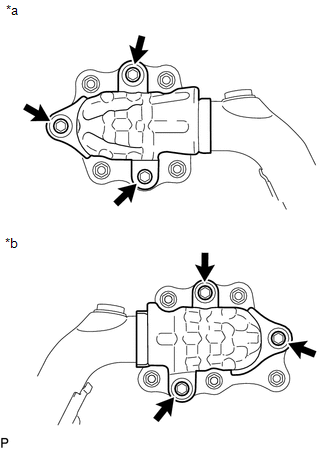

    1. Remove the 3 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold sub-assembly LH (TWC: Front Catalyst).
      GTY814049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Exhaust Manifold Sub-assembly LH
      *b Exhaust Manifold Sub-assembly RH
    2. Remove the 3 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold sub-assembly RH (TWC: Front Catalyst).
