Removal [10/2017 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

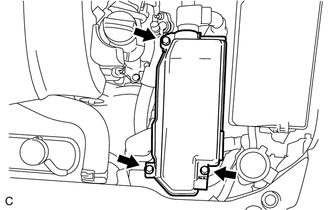

- REMOVE ENGINE ROOM ECU COVER NOTE:
- Remove all water on and around the engine room ECU cover.
- Perform the inspection indoors to avoid rain.
- Be sure to prevent water intrusion to the ECM (connectors and screw parts).
- REMOVE ECM

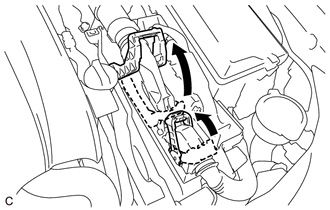

- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.NOTE:
After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.

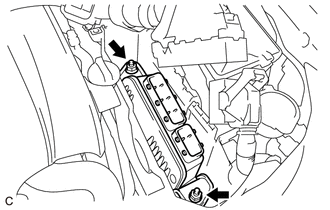

- Remove the 2 nuts and ECM from the engine room ECU box.NOTE:
If the ECM has been struck or dropped, replace it.
- Rotate the 2 levers while pushing the locks, and disconnect the 2 ECM connectors.
- REMOVE NO. 1 ECM BRACKET
- REMOVE NO. 2 ECM BRACKET
