Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]
DRAIN ENGINE COOLANT
See step 2

DISCONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY

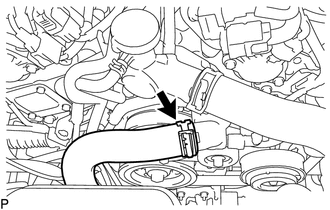

Slide the clip and disconnect the No. 2 radiator hose sub-assembly from the water inlet with thermostat sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

Disconnect the water inlet with thermostat sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

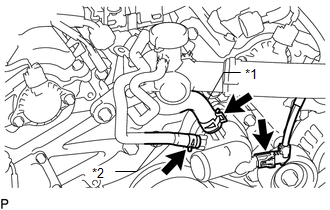

*1	No. 3 Water By-pass Hose
*2	No. 15 Water By-pass Hose

Slide the clip and disconnect the No. 3 water by-pass hose from the water inlet with thermostat sub-assembly.
Slide the clip and disconnect the No. 15 water by-pass hose from the water inlet with thermostat sub-assembly.

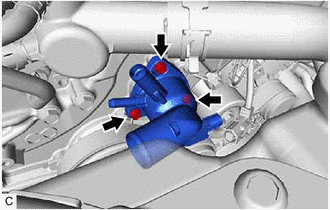

Remove the 2 bolts, nut and water inlet with thermostat sub-assembly from the timing chain cover assembly.

Remove the gasket from the water inlet with thermostat sub-assembly.
