Body - Interior & Exterior: Interior: Carpets: Removal

1. Remove front seats. (Refer to BODY/SEATS/FRONT SEAT - REMOVAL) .
2. Remove first row seats. (Refer to BODY/SEATS/FIRST ROW SEAT - REMOVAL) .
3. Remove second row seats. (Refer to BODY/SEATS/SECOND ROW SEAT - REMOVAL) .
4. Remove move shifter knob.
5. Remove front floor console shift bezel. (Refer to BODY/INTERIOR/SHIFT BEZEL - REMOVAL) .
6. Remove front floor console. (Refer to BODY/INTERIOR/FRONT FLOOR CONSOLE - REMOVAL) .
7. Remove rear floor console. (Refer to BODY/INTERIOR/REAR FLOOR CONSOLE - REMOVAL) .
8. Floor console base assembly. (Refer to BODY/INTERIOR/FLOOR CONSOLE - REMOVAL) .
9. Remove front and rear sill scuff plates. (Refer to BODY/INTERIOR/FRONT DOOR SILL SCUFF PLATE - REMOVAL)  and (Refer to BODY/INTERIOR/REAR DOOR SCUFF PLATE - REMOVAL) .
10. Remove cowl side trim panels. (Refer to BODY/INTERIOR/COWL SIDE TRIM - REMOVAL) .
11. Remove the floor stowage bin. (Refer to BODY/INTERIOR/REAR FLOOR STOWAGE BIN - REMOVAL) .
12. Remove liftgate sill scuff plate. (Refer to BODY/INTERIOR/LIFTGATE SILL SCUFF PLATE - REMOVAL) .
13. Remove B-pillar lower trim. (Refer to BODY/INTERIOR/B-PILLAR LOWER TRIM - REMOVAL) .
14. Remove quarter trim panel. (Refer to BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL) .
15. Remove fasteners attaching carpet to floor panel. See Fig 1.
    CAUTION: Use care when pulling wires and connectors through the carpet.
16. Pull wire harnesses and connector through carpet.
17. Roll carpet from under instrument panel rearward to rear of vehicle and remove.
18. Rear floor carpet roll and fold carpet forward away from rear door opening and remove from vehicle.
19. Remove floor silencer from vehicle. See Fig 2.

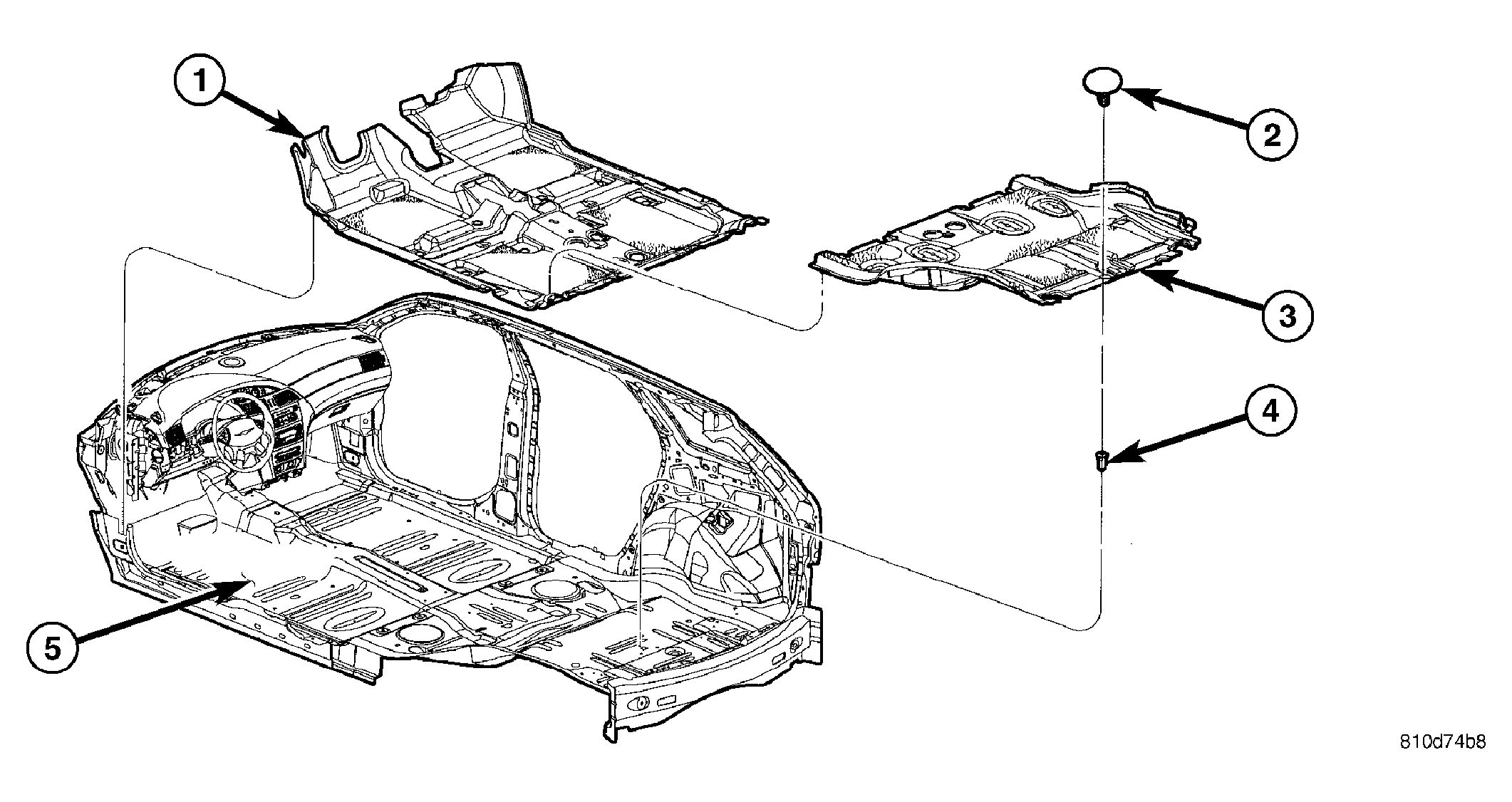

Fig 1: FLOOR CARPET

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT FLOOR CARPET

2 - PUSH PIN(S)

3 - REAR FLOOR CARPET

4 - GROMMET

5 - FRONT FULL FLOOR PANEL

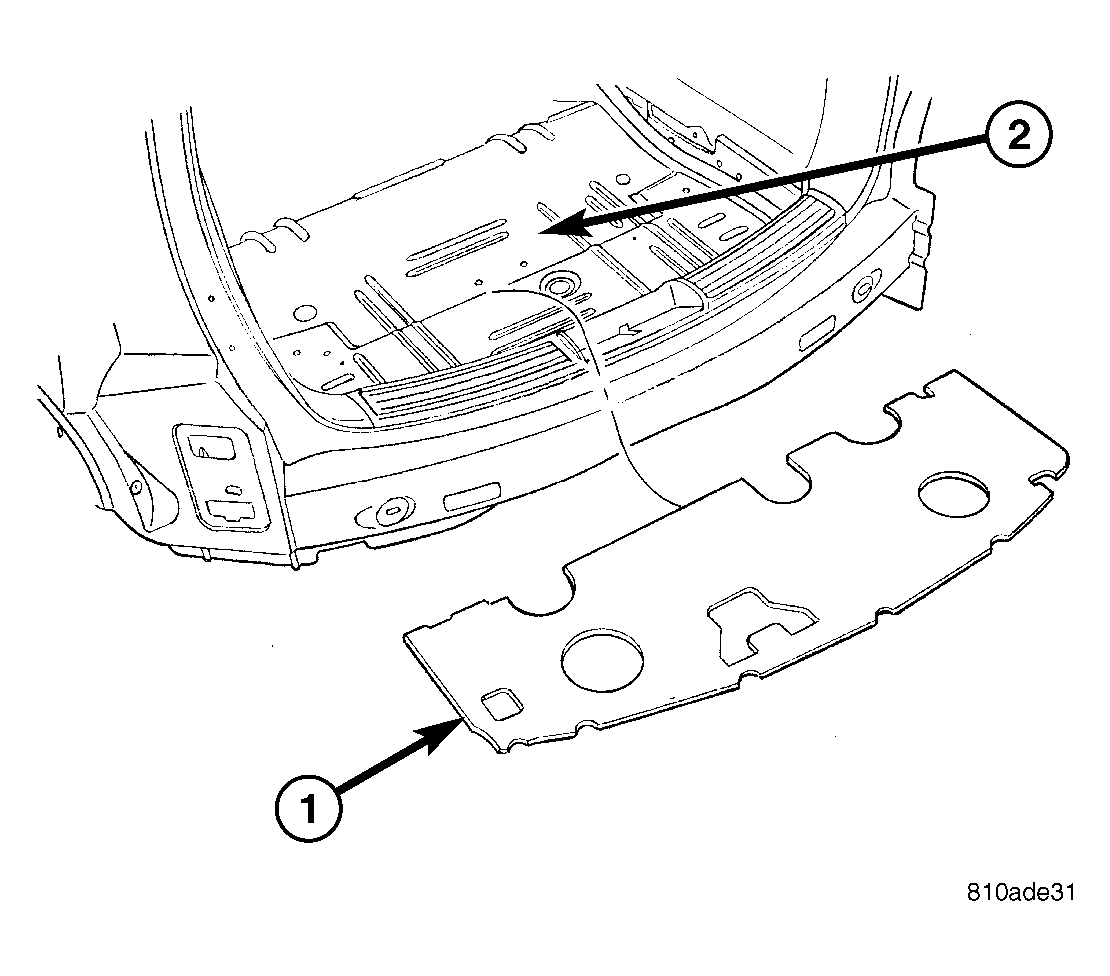

Fig 2: REAR FLOOR SILENCER

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR FLOOR SILENCER

2 - REAR FLOOR
