Cowl Side Trim Panel: Removal

  1. Remove instrument panel side cover.
  2. Remove front door sill scuff plate. (Refer to BODY/INTERIOR/FRONT DOOR SCUFF PLATE - REMOVAL) .
  3. Remove A-pillar cowl side trim panel from vehicle by disengaging hidden clips. See Fig 1.

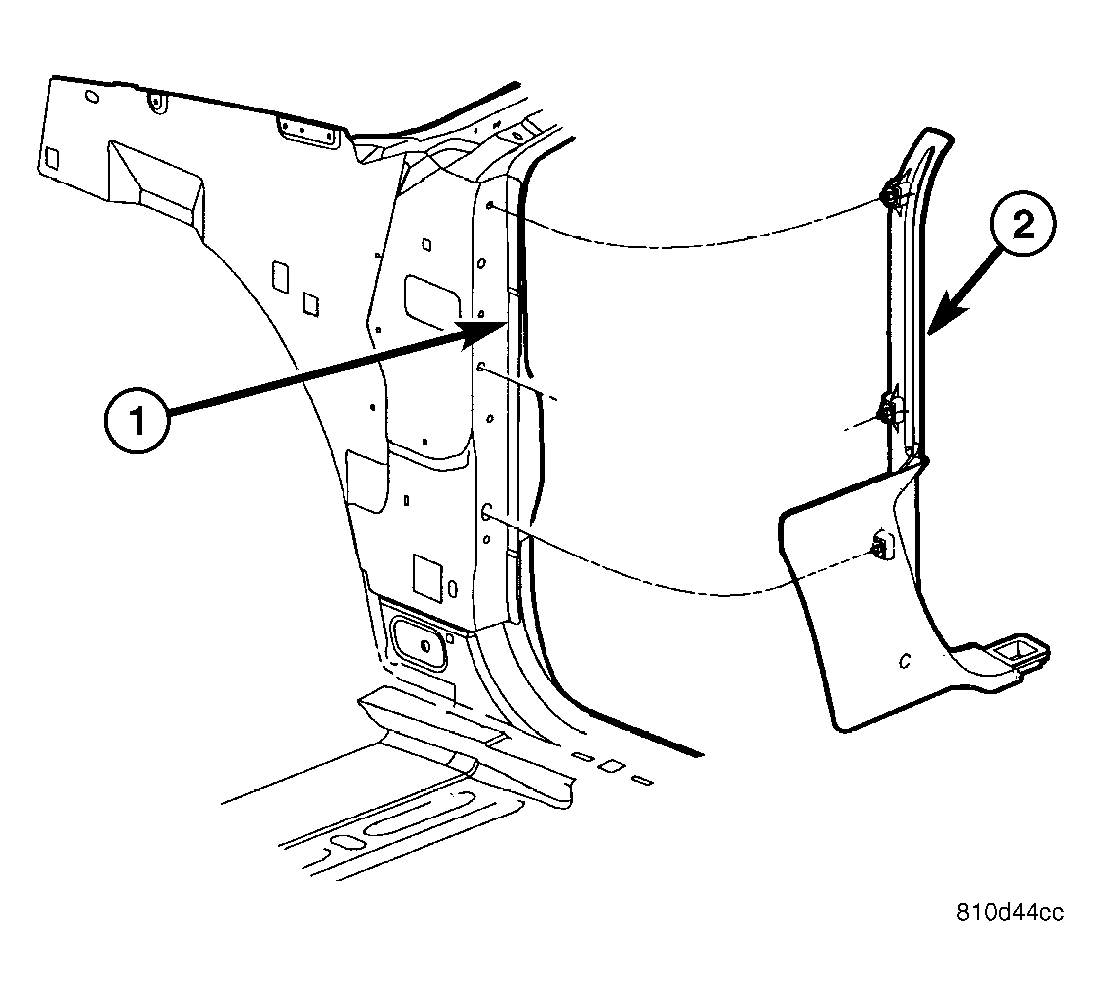

Fig 1: COWL SIDE TRIM PANEL
GC0001081Courtesy of DAIMLERCHRYSLER CORP.
1 - A-PILLAR
2 - COWL SIDE TRIM PANEL
