Front Door Sill Scuff Plate: Removal

Using trim stick (C-4755), disengage push pins attaching door sill plate to door sill.
Remove door sill scuff plate from vehicle. See Fig 1.

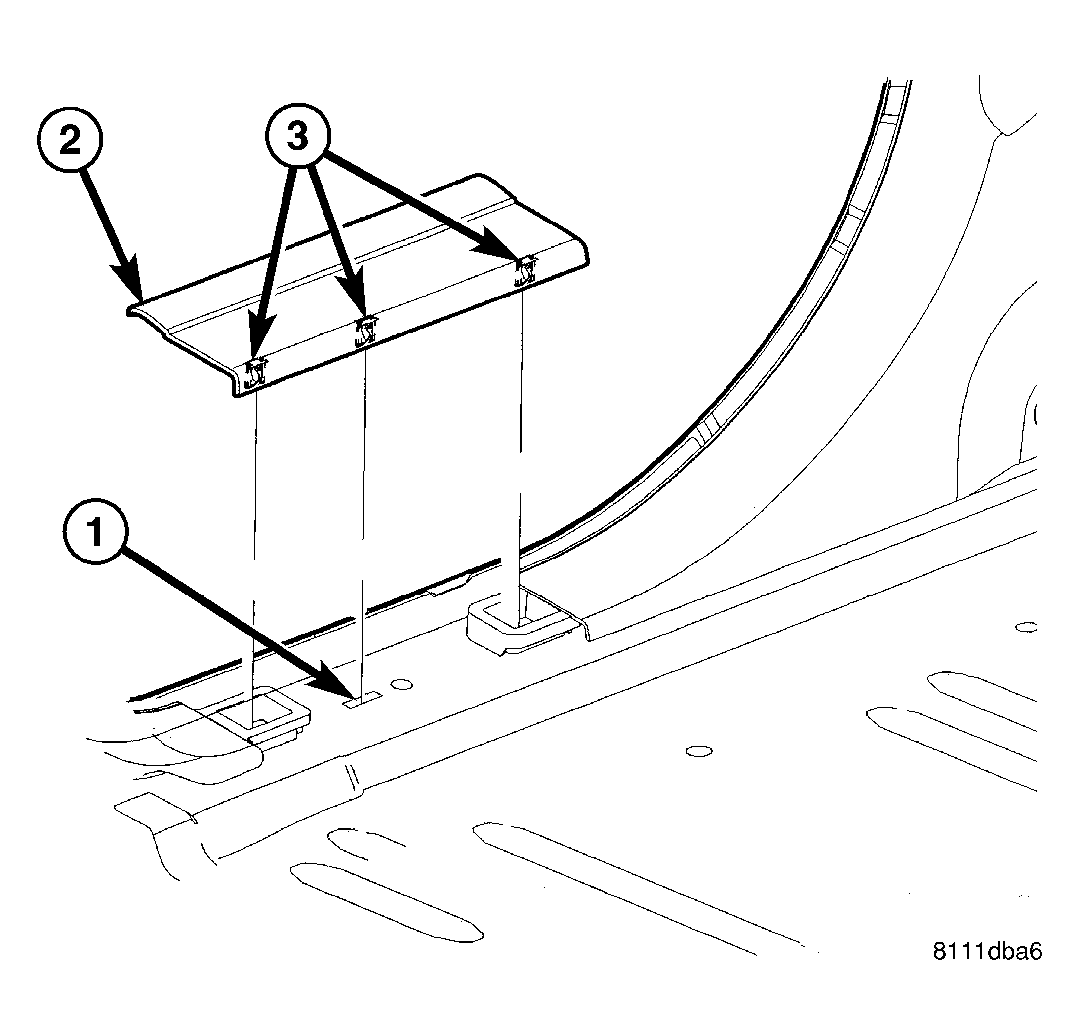

Fig 1: FRONT DOOR SILL SCUFF PLATE

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT DOOR SILL

2 - FRONT DOOR SILL SCUFF PLATE

3 - PUSH PIN
