Rear Floor Stowage Bin: Removal

Open liftgate.
Open rear floor storage bin lid. See Fig 1.
Remove attaching screws (4) in the bottom of bin.
Remove floor storage bin from vehicle.

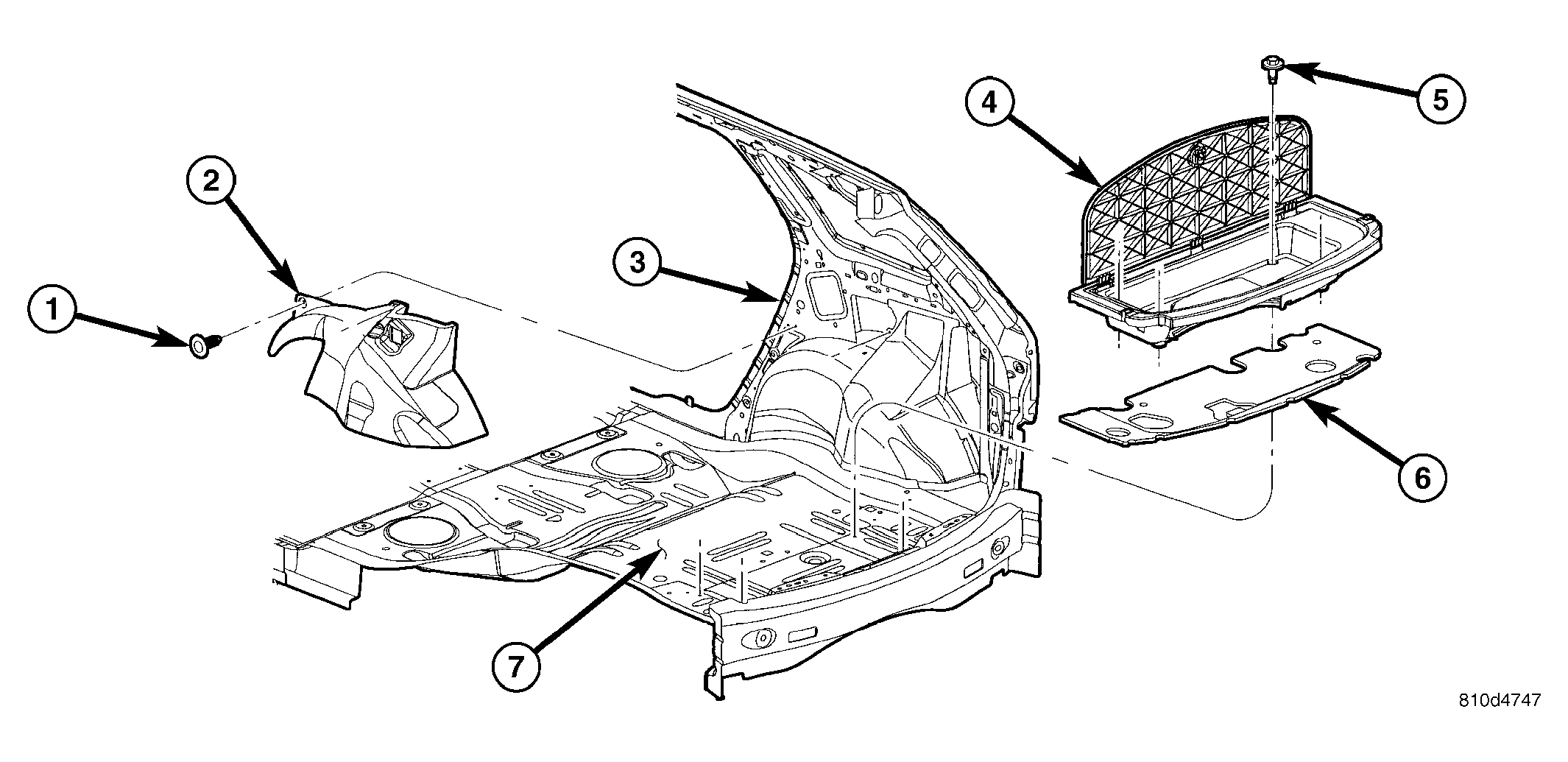

Fig 1: FLOOR STORAGE BIN

GC0001099

Courtesy of DAIMLERCHRYSLER CORP.

1 - PUSH PIN

2 - WHEELHOUSE SILENCER

3 - BODY SIDE PANEL

4 - FLOOR STORAGE BIN

5 - ATTACHING SCREWS

6 - FLOOR SILENCER

7 - REAR FLOOR PANEL
