Rear Door Scuff Plate: Removal

Using trim stick (C-4755), disengage push pins attaching door sill plate to door sill.
Remove door sill scuff plate from vehicle. See Fig 1.

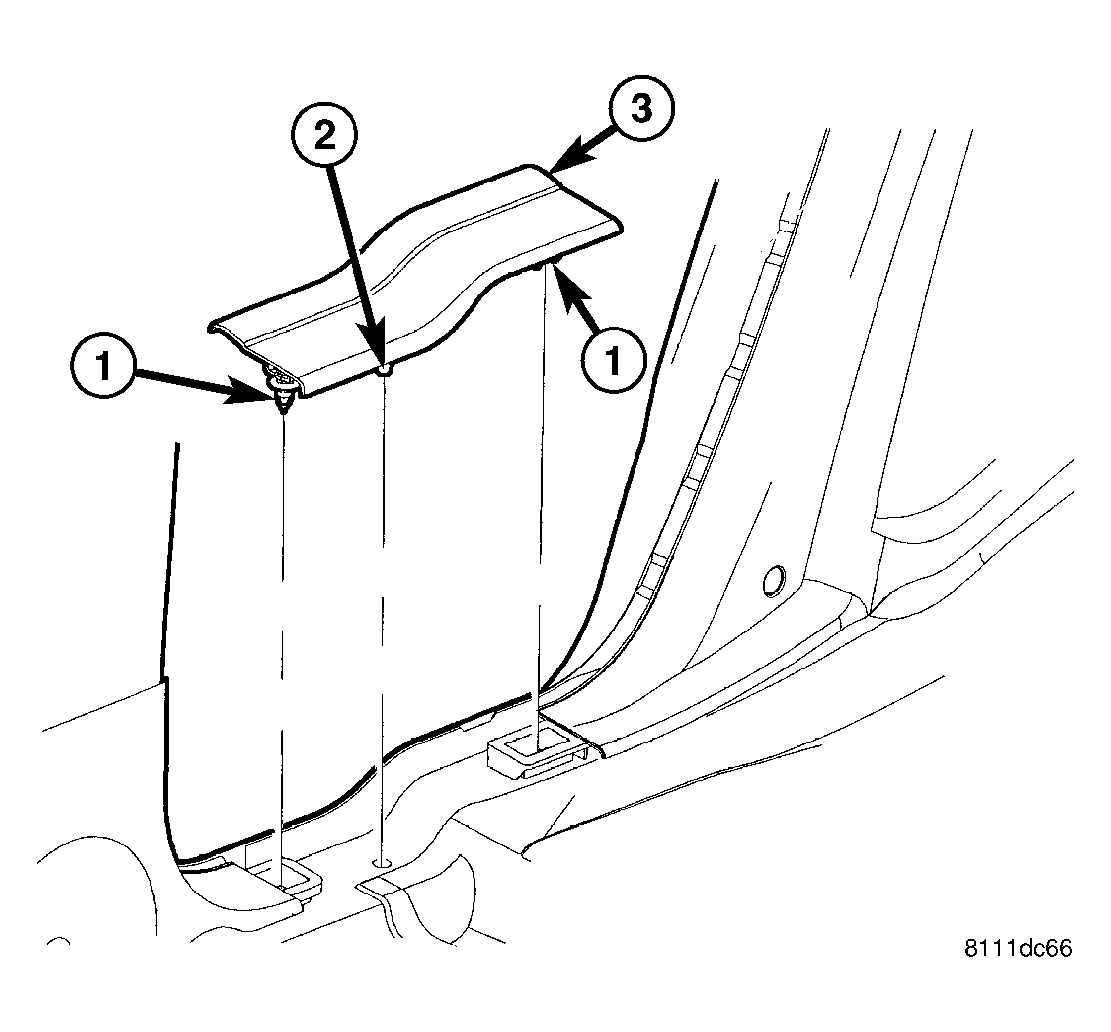

Fig 1: REAR DOOR SILL SCUFF PLATE

Courtesy of DAIMLERCHRYSLER CORP.

1 - PUSH PINS

2 - 4-WAY LOCATION PIN

3 - REAR DOOR SILL SCUFF PLATE
