B-Pillar Lower Trim: Removal

  1. Slide lower seat belt cover rearward to expose anchor bolt.
  2. Remove bolt attaching lower seat belt anchor to floor. See Fig 1.
  3. Remove upper B-pillar trim cover.
  4. Remove access panel from B-pillar trim.
  5. Disengage hidden clips attaching lower trim cover to B-pillar.
  6. Remove lower B-pillar trim cover from vehicle.

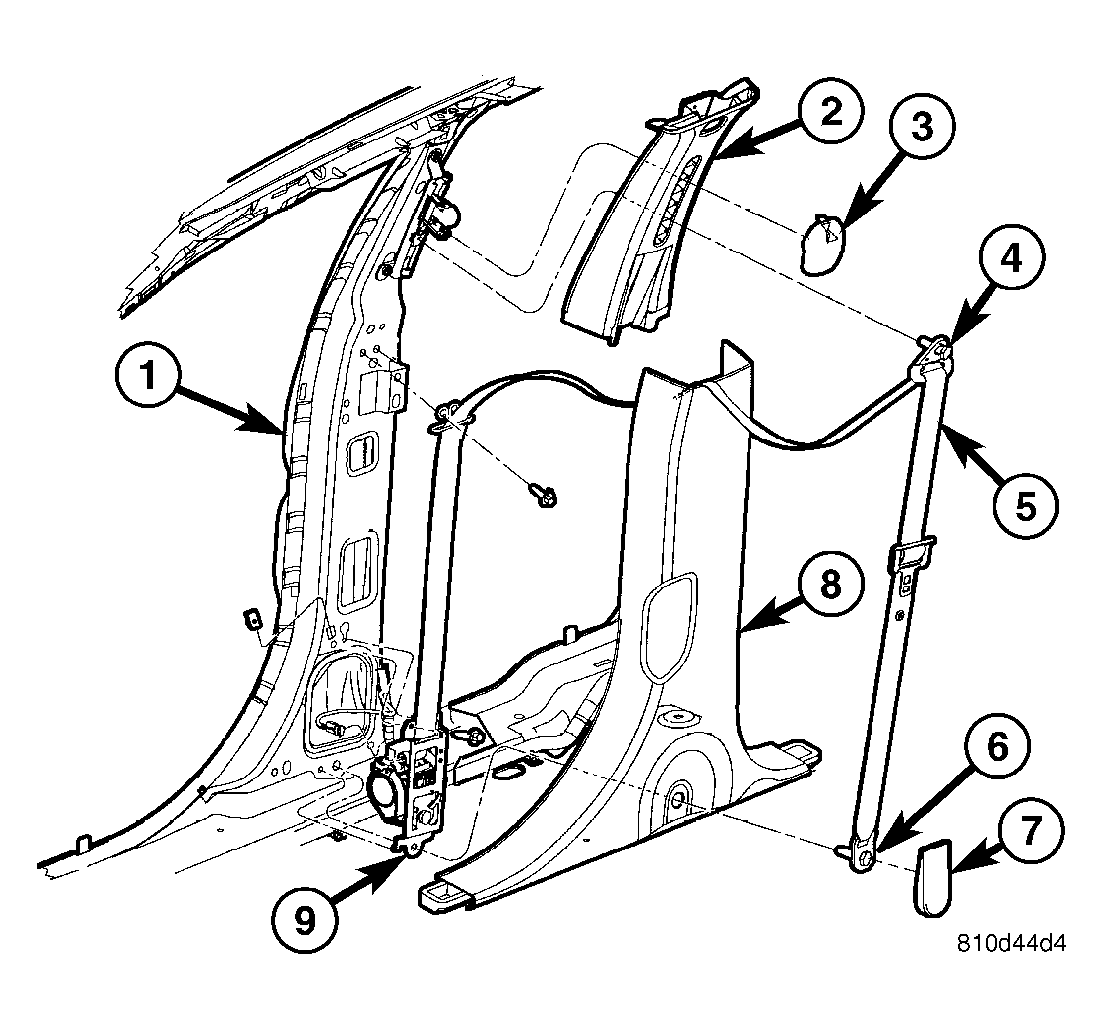

Fig 1: B-PILLAR LOWER TRIM PANEL
GC0001075Courtesy of DAIMLERCHRYSLER CORP.
1 - B-PILLAR
2 - B-PILLAR UPPER TRIM PANEL
3 - TURNING LOOP ADJUSTER COVER
4 - B-PILLAR UPPER SEAT BELT BOLT
5 - SEAT BELT ASSEMBLY
6 - B-PILLAR LOWER SEAT BELT BOLT
7 - B-PILLAR LOWER SEAT BELT ANCHOR COVER
8 - B-PILLAR LOWER TRIM PANEL
9 - SEAT BELT RETRACTOR
