Front Seat: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Raise and support vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
  3. For right side front seat, remove muffler to body heat shield. (Refer to EXHAUST SYSTEM/HEAT SHIELDS - DESCRIPTION) .
  4. For left side front seat, remove vapor canister. (Refer to EMISSIONS CONTROL/EVAPORATIVE EMISSIONS/VAPOR CANISTER - REMOVAL) .
  5. Remove four nuts attaching seat to floor pan. See Fig 1.

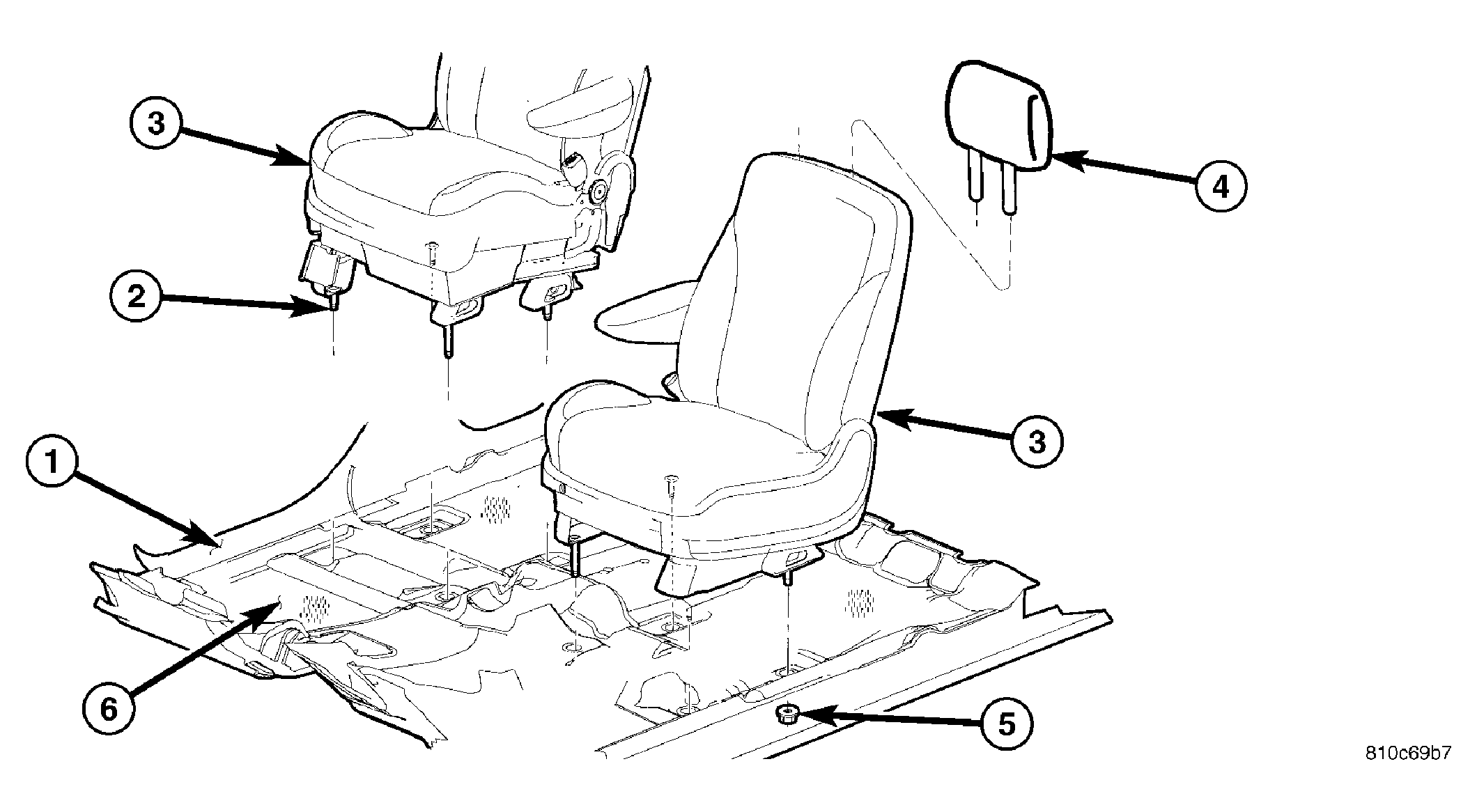

    Fig 1: FRONT SEAT
    GC0001115Courtesy of DAIMLERCHRYSLER CORP.
    1 - FLOOR PAN
    2 - FRONT SEAT STUD(S)
    3 - FRONT SEAT
    4 - HEADREST
    5 - SEAT ATTACHING NUT(S)
    6 - CARPETING
  6. Lower vehicle to access the seat.
  7. Remove headrest from seat. (Refer to BODY/SEATS/HEADREST - REMOVAL) .
  8. Raise seat to access wire connector under seat and disconnect wire connectors. See Fig 2.

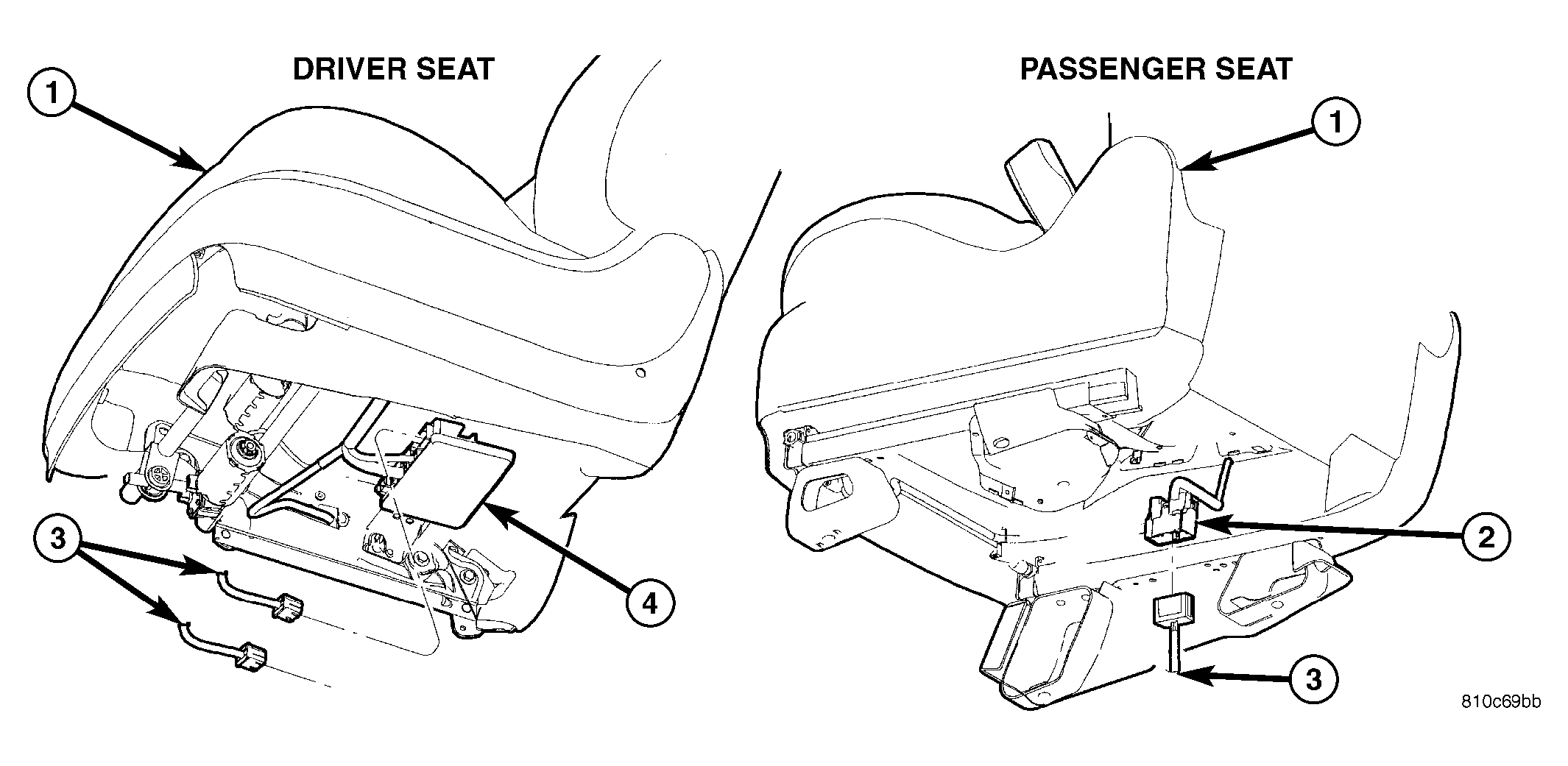

    Fig 2: SEAT WIRE CONNECTORS
    GC0001116Courtesy of DAIMLERCHRYSLER CORP.
    1 - FRONT SEAT
    2 - THERMAL PASSENGER SEAT CONNECTOR
    3 - BODY WIRE HARNESS CONNECTORS
    4 - DRIVE SEAT CONTROL MEMORY MODULE
  9. Remove seat from vehicle
