Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the window approximately half way down in the door.
  2. Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
  3. Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  4. Remove the rear side door inside handle (3). Refer to Rear Side Door Inside Handle Replacement .
    Fig 1: Rear Side Door Inside Handle
    GM4025113Courtesy of GENERAL MOTORS COMPANY
  5. Remove the rear side door inside handle rod (1). Refer to Rear Side Door Inside Handle Rod Replacement .
    Fig 2: Rear Side Door Inside Handle Rod
    GM4025119Courtesy of GENERAL MOTORS COMPANY
  6. Remove the rear side door locking rod bellcrank rod (2) and locking rod (3). Refer to Rear Side Door Locking Rod Bellcrank Rod Replacement .
    Fig 3: Rear Side Door Locking Rod Bellcrank Rod And Locking Rod
    GM4086336Courtesy of GENERAL MOTORS COMPANY
  7. Remove the radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement .
    Fig 4: Radio Rear Side Door Speaker
    GM4045917Courtesy of GENERAL MOTORS COMPANY
  8. Remove the rear side door window belt reveal molding (1). Refer to Rear Side Door Window Belt Reveal Molding Replacement .
    Fig 5: Rear Side Door Window Belt Reveal Molding
    GM4086599Courtesy of GENERAL MOTORS COMPANY
  9. Remove the rear side door window (1) from the regulator (2) and fix the window with proper tool and lower the regulator fully.
    Fig 6: Rear Side Door Window And Regulator
    GM4223692Courtesy of GENERAL MOTORS COMPANY
  10. Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .
    Fig 7: Rear Side Door Window Weatherstrip
    GM4111024Courtesy of GENERAL MOTORS COMPANY
  11. Remove the rear side door window channel screw (1) and Remove the rear side door window channel (2). Refer to Rear Side Door Window Channel Replacement .
    Fig 8: Rear Side Door Window Channel And Screws
    GM4111007Courtesy of GENERAL MOTORS COMPANY
  12. Rotate the rear door window as necessary to remove it from the door and remove the rear side door window from the rear side door.

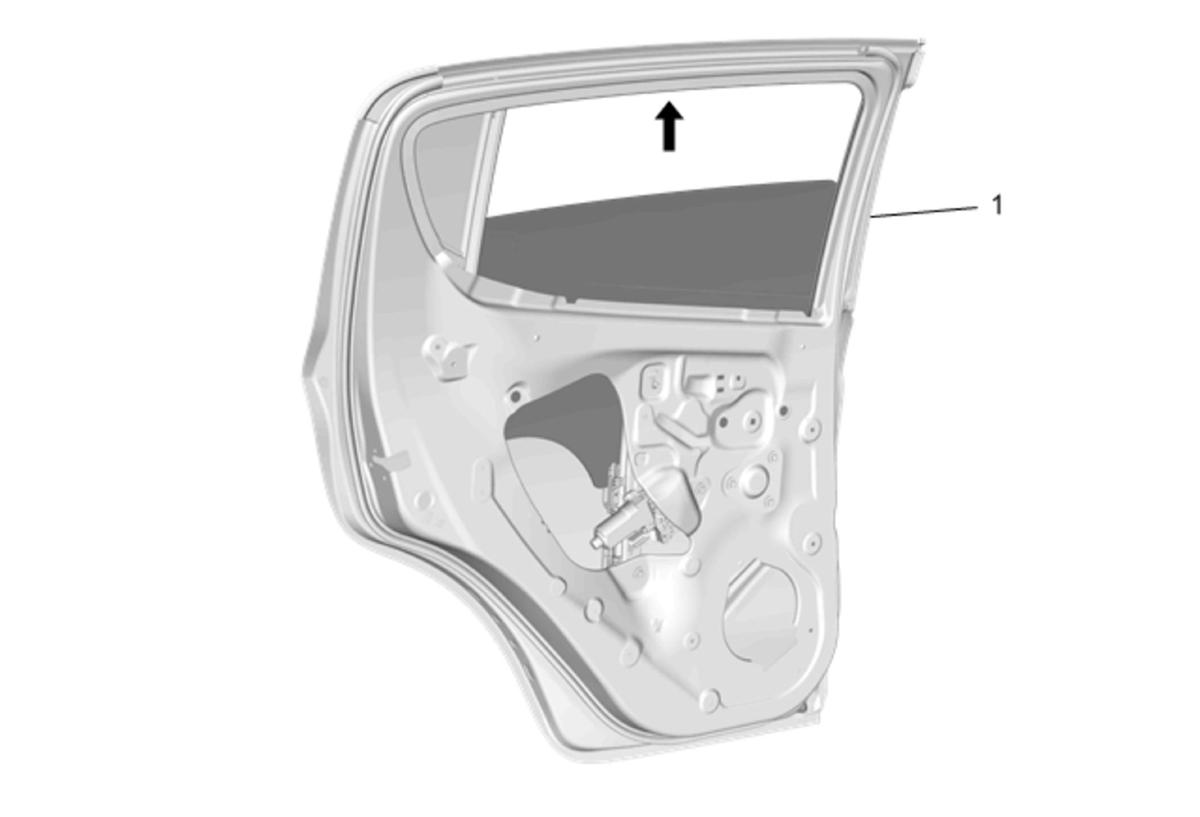

    Fig 9: Removing Rear Side Door Window From Door
    GM4086363Courtesy of GENERAL MOTORS COMPANY
