Rear Side Door Trim Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

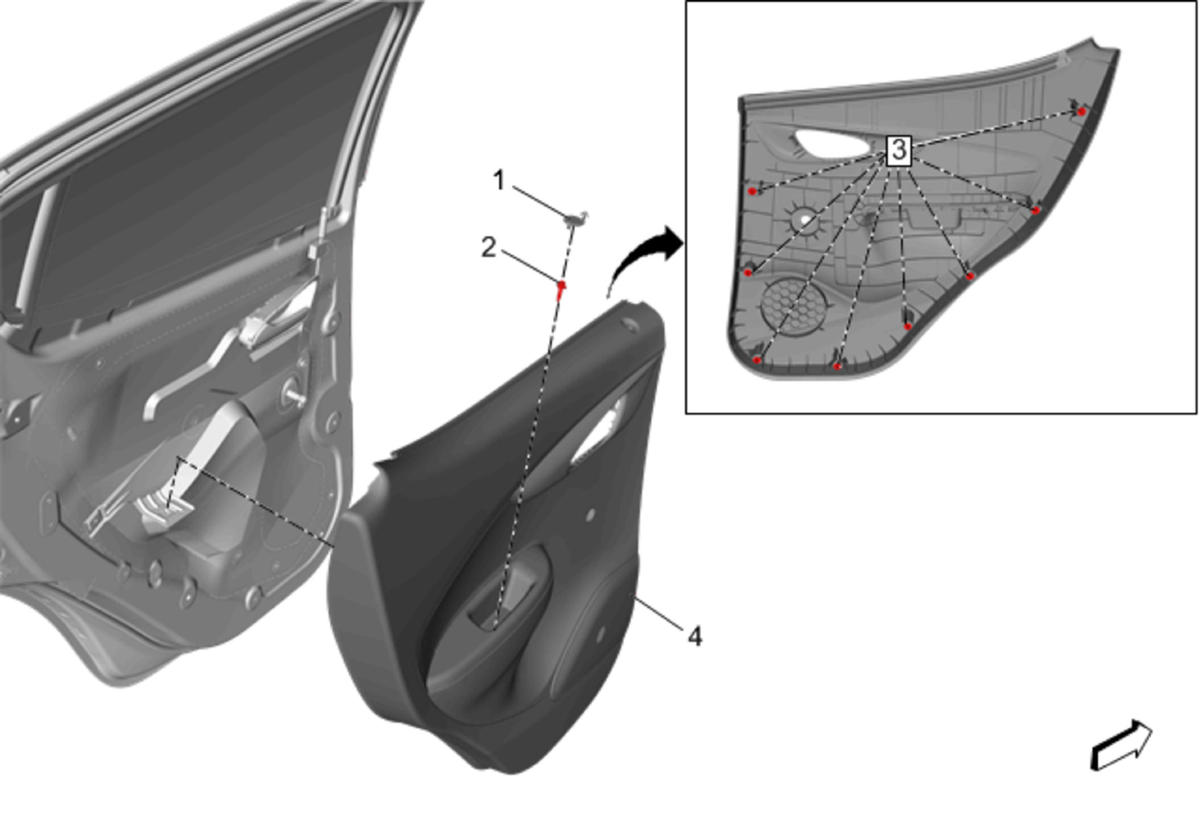

Fig 1: Rear Side Door Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door upper rear trim panel assembly. Refer to Rear Side Door Upper Rear Trim Panel Replacement . If needed, remove the rear side door window regulator handle. Refer to Rear Side Door Window Regulator Handle Replacement .
1	Rear Side Door Armrest Pull Cup Bolt Cap Procedure Use a flat bladed plastic tool to remove.
2	Rear Side Door Trim Fastener CAUTION: Refer to Fastener Caution .
3	Rear Side Door Trim Clip (Qty: 8) WARNING: These retainers/clips MUST be replaced with new retainers/clips anytime they become loose or are removed. Failure to replace these retainers/clips after they become loose or are removed may cause a severe loss of safety in cases of a crash and lead to personal injury.
4	Rear Side Door Trim Procedure Using a flat bladed plastic tool, loosen the rear side door trim clips. Pull the rear side door trim panel upwards to unlatch. Start releasing rear side door trim retainer at the bottom. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector.
