Rear Side Door Locking Rod Bellcrank Rod Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

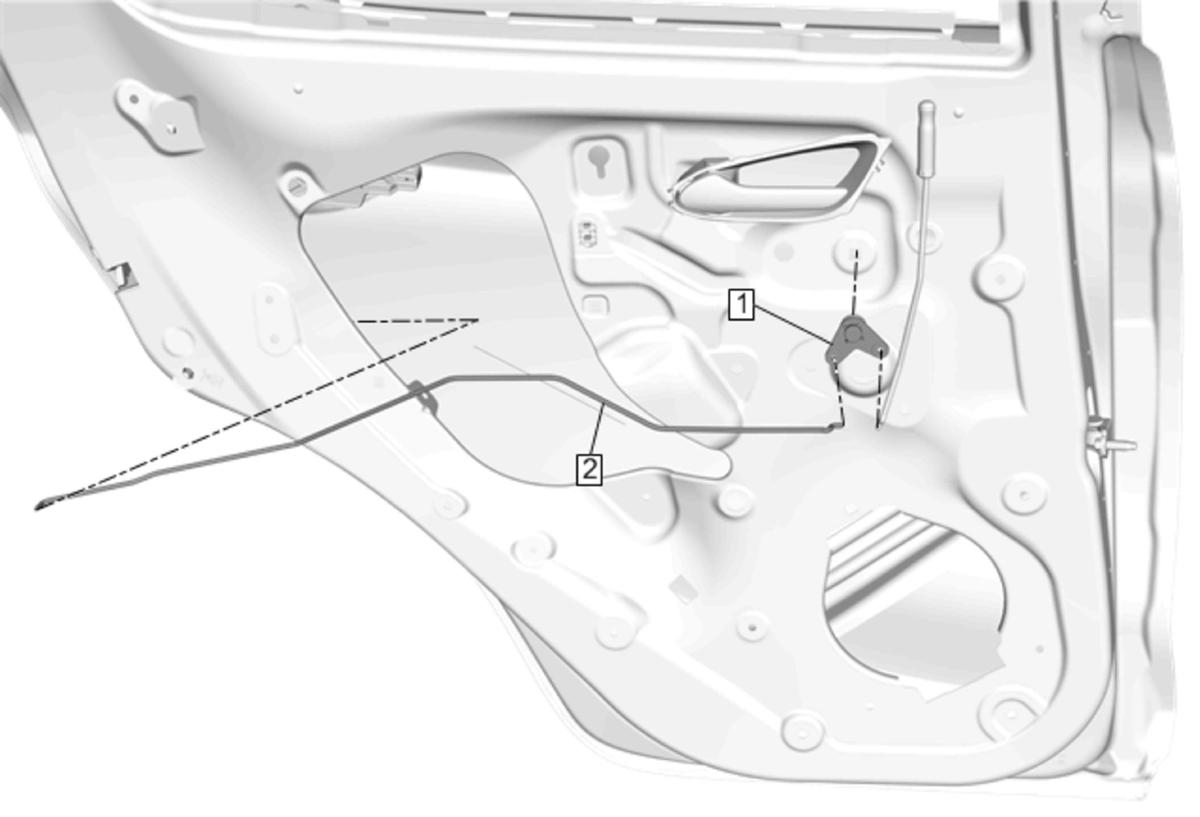

Fig 1: Rear Side Door Locking Rod Bellcrank Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the window in the full up position. Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the water deflect.
1	Rear Side Door Locking Rod Bellcrank NOTE: Use a small flat-bladed tool to release the retainer from the center of the bellcrank.
2	Rear Side Door Locking Rod Bellcrank Rod

Callout

Component Name

Preliminary Procedures

Place the window in the full up position.
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the water deflect.

Rear Side Door Locking Rod Bellcrank

NOTE:

Use a small flat-bladed tool to release the retainer from the center of the bellcrank.

Rear Side Door Locking Rod Bellcrank Rod
