Rear Side Door Window Weatherstrip Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

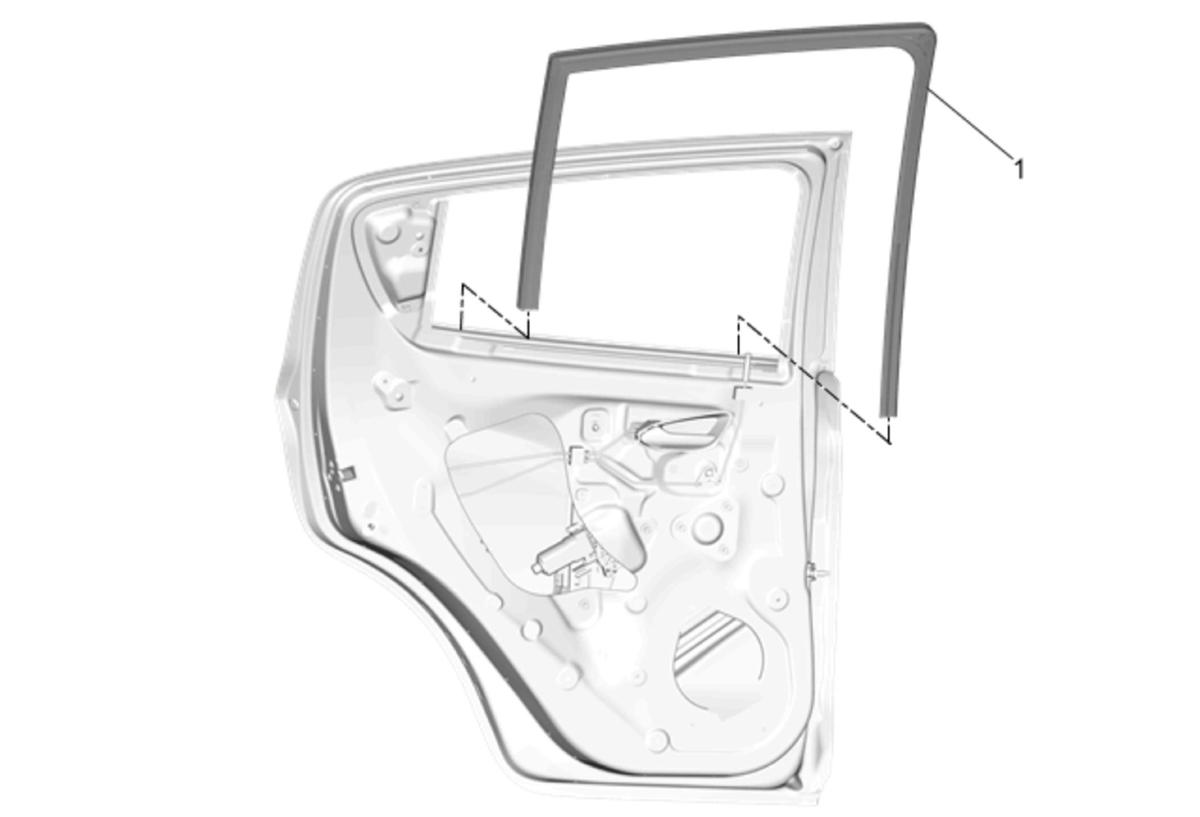

Fig 1: Rear Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement . Detach the rear side door window from rear side door regulator and then put it down in side door panel. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Weatherstrip Procedure Remove the weatherstrip from the front and rear window guides. Insert the weatherstrip downward in the window guides until fully seated. Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

Preliminary Procedures

Remove the radio rear side door speaker. Refer to Radio Rear Side Door Speaker Replacement .
Detach the rear side door window from rear side door regulator and then put it down in side door panel. Refer to Rear Side Door Window Replacement .

Rear Side Door Window Weatherstrip

Procedure

Remove the weatherstrip from the front and rear window guides.
Insert the weatherstrip downward in the window guides until fully seated.
Inspect the door window for proper operation before installing the door trim panel.
