Rear Side Door Window Belt Reveal Molding Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

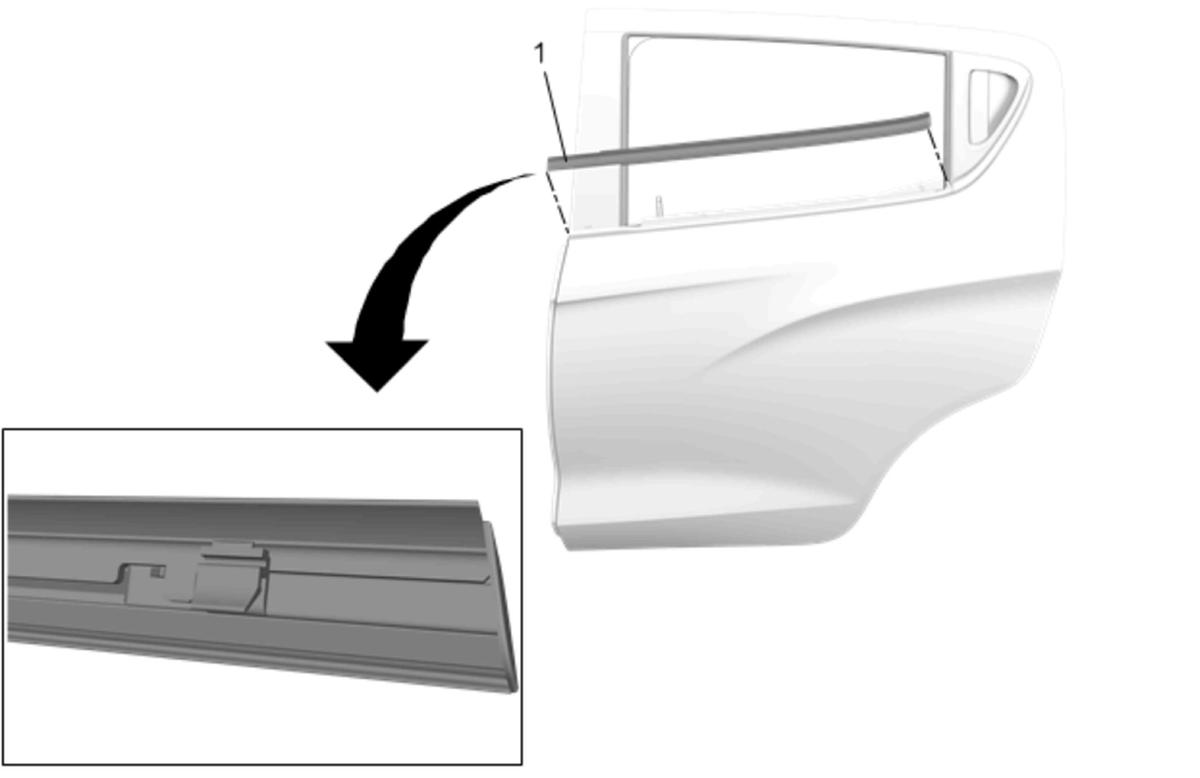

| Callout |
Component Name |
| 1 |
Rear Side Door Window Belt Reveal Molding Procedure
- Use the appropriate tool, lift the front corner of the window belt reveal molding and pull upward and away from the door flange.
- Press firmly to insert the rear side door window belt reveal molding back on the door flange.
- Inspect the door window for proper operation.
|
