Rear Side Door Inside Handle Rod Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

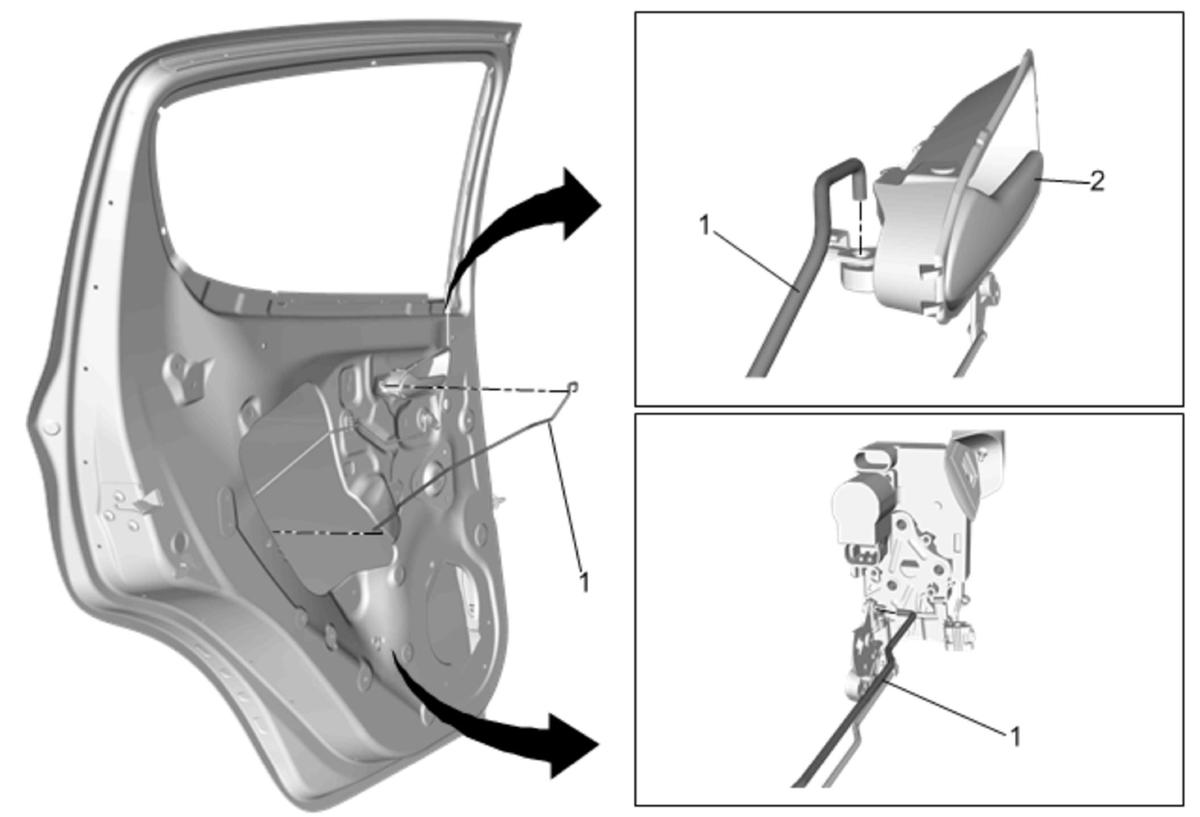

Fig 1: Rear Side Door Inside Handle Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the window in the full up position. Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the water deflector.
1	Rear Side Door Inside Handle Rod NOTE: Inspect the proper operation before installing the door trim.
2	Rear Side Door Inside Handle

Callout

Component Name

Preliminary Procedures

Place the window in the full up position.
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the water deflector.

Rear Side Door Inside Handle Rod

NOTE:

Inspect the proper operation before installing the door trim.

Rear Side Door Inside Handle
