Radio Rear Side Door Speaker Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

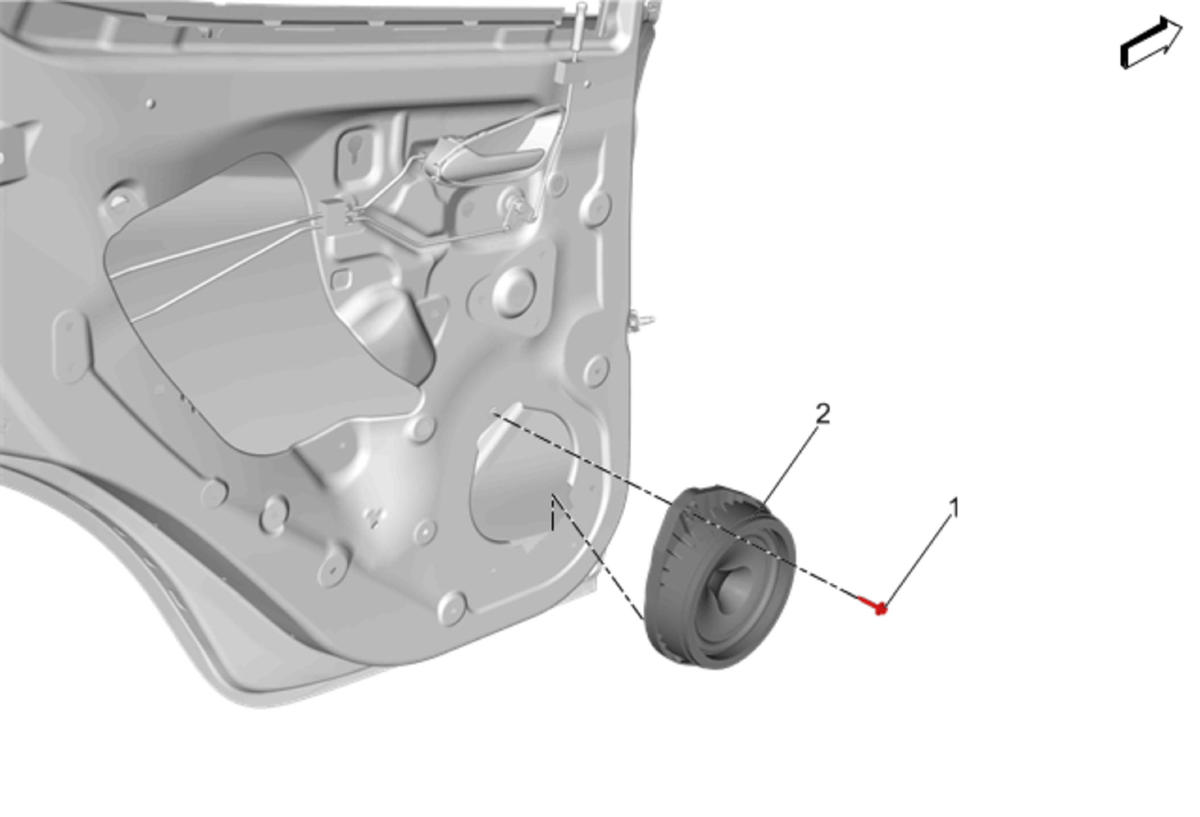

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . |
|
| 1 | Radio Rear Side Door Speaker Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Rear Side Door Speaker Procedure Disconnect the electrical connector. |
