Rear Side Door Window Channel Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

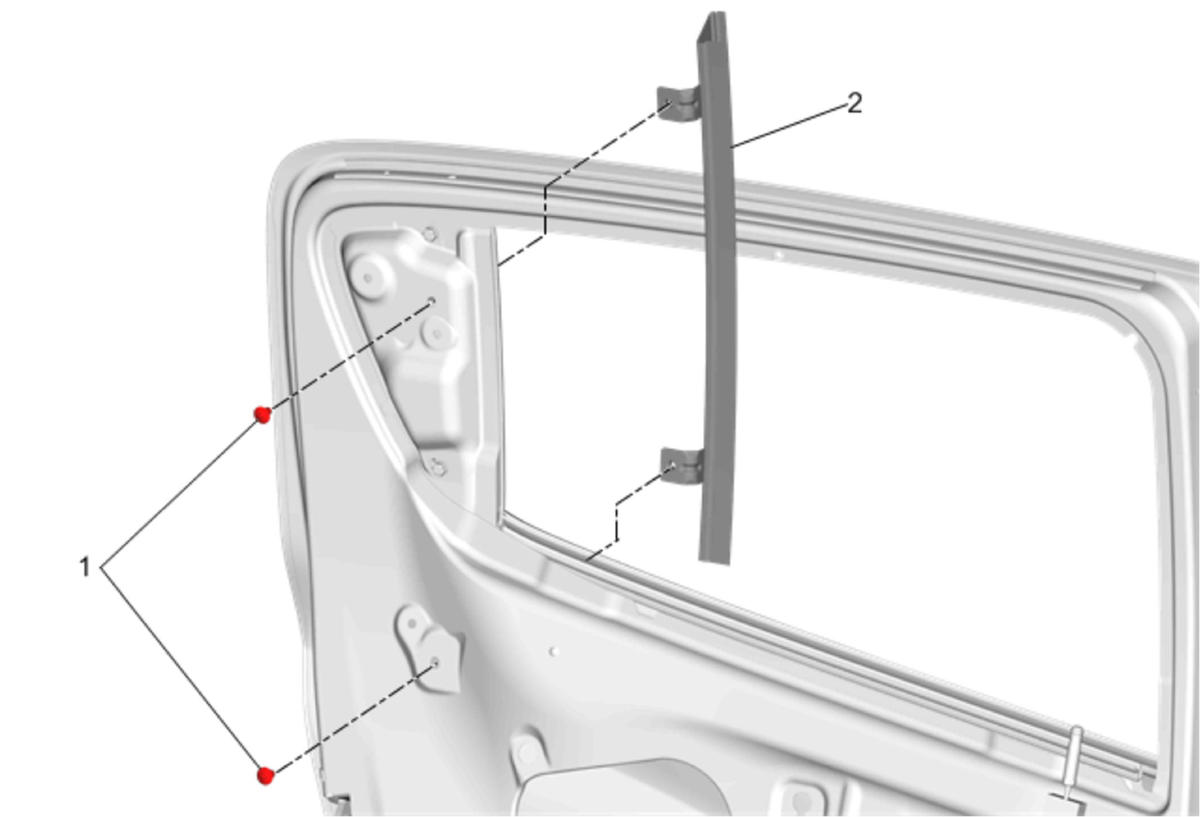

Fig 1: Rear Side Door Window Channel And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Detach the rear side door window from rear side door regulator and then put it down in side door panel. Refer to Rear Side Door Window Replacement . Partially peel off the rear side door window weatherstrip from the door window opening. Refer to Rear Side Door Window Weatherstrip Replacement .
1	Rear Side Door Window Rear Channel Fastener CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Rear Side Door Window Channel

Callout

Component Name

Preliminary Procedures

Detach the rear side door window from rear side door regulator and then put it down in side door panel. Refer to Rear Side Door Window Replacement .
Partially peel off the rear side door window weatherstrip from the door window opening. Refer to Rear Side Door Window Weatherstrip Replacement .

Rear Side Door Window Rear Channel Fastener

CAUTION: Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Rear Side Door Window Channel
